STM32
Value Line Discovery
STM32 Value line Discovery is an ultra-low-cost and convenient starter platform, the STM32
Discovery Kit is particularly suited to the STM32 Value Line
microcontrollers.

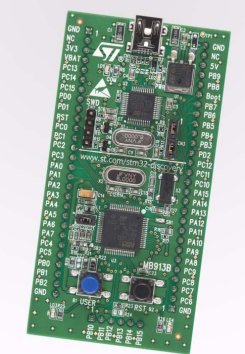

The USB-powered board is straightforward to set up and use by plugging into a PC.
It is populated with a 24MHz, 64-pin STM32F100RBT6B ( Cortex M3 ) Value Line device featuring a 128Kbyte Flash plus multiple timers, analog peripherals, and industry-standard serial interfaces.
The included ST-LINK in-circuit debugger allows work to start without further costs.
Extension connectors provided on the board enable easy connection to other boards or devices for deeper testing of the microcontroller peripherals.

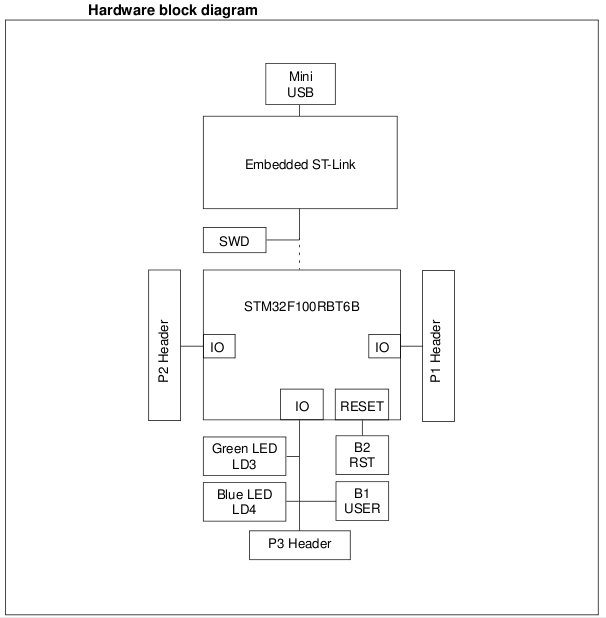

The STM32 Value line Discovery evaluation board helps you discover the STM32 Value line features and to develop and share your applications. It is based on an STM32F100RBT6B and includes ST-Link embedded debug tool interface, LEDs and push buttons.

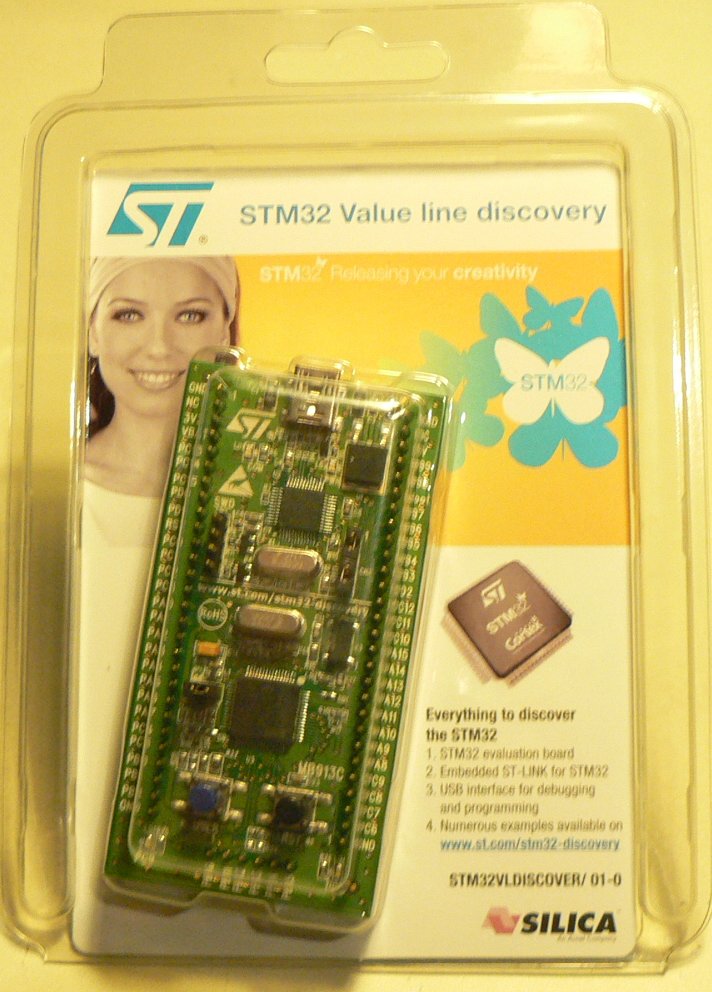

Silica Order Code is: STM32VLDISCOVERY
The USB-powered board is straightforward to set up and use by plugging into a PC.
It is populated with a 24MHz, 64-pin STM32F100RBT6B ( Cortex M3 ) Value Line device featuring a 128Kbyte Flash plus multiple timers, analog peripherals, and industry-standard serial interfaces.
The included ST-LINK in-circuit debugger allows work to start without further costs.
Extension connectors provided on the board enable easy connection to other boards or devices for deeper testing of the microcontroller peripherals.
The STM32 Value line Discovery evaluation board helps you discover the STM32 Value line features and to develop and share your applications. It is based on an STM32F100RBT6B and includes ST-Link embedded debug tool interface, LEDs and push buttons.
Silica Order Code is: STM32VLDISCOVERY
Features
■
STM32F100RBT6B microcontroller,
128 KB Flash, 8 KB RAM
■ Powered by USB cable between PC and STM32 Value line Discovery

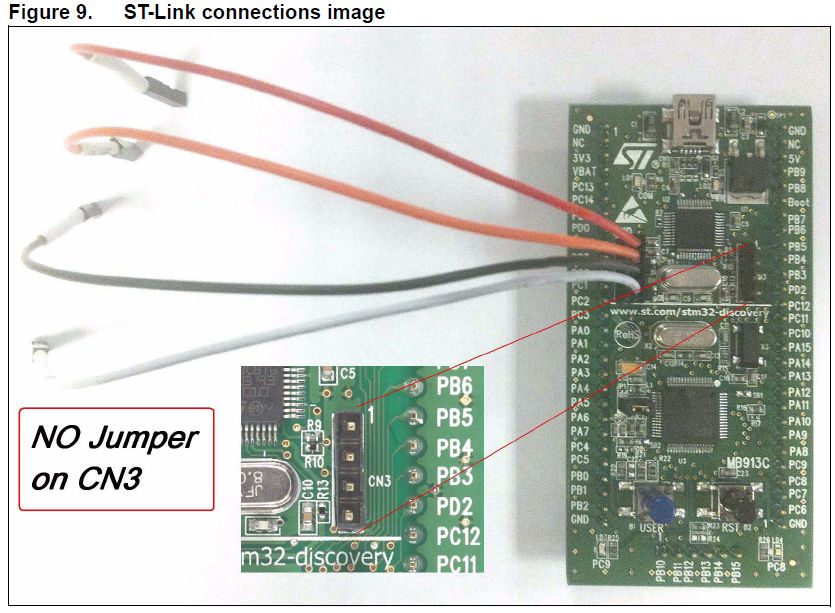

■ Embedded debugger ST-Link, JTAG SWD debug support
■ USB interface for programming and debugging
■ Red LED for USB communication, red LED for 3.3 volts power on
■ Can be externally powered by 5 volts or 3 volts
■ Can power supply external application with 5 volts and 3 volts

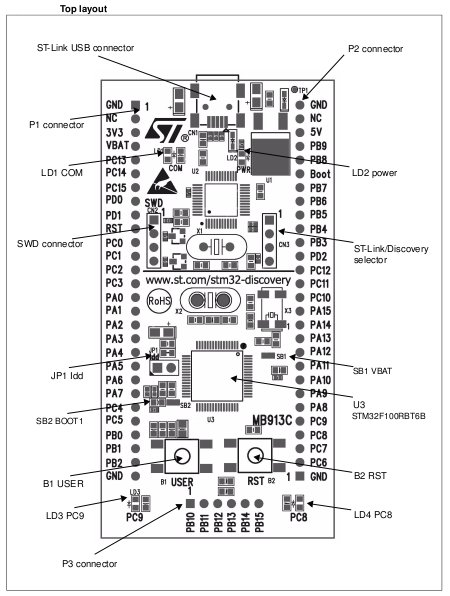

■ Two user LED, LD3 and LD4 (green and blue)
■ Two push buttons (User and Reset)

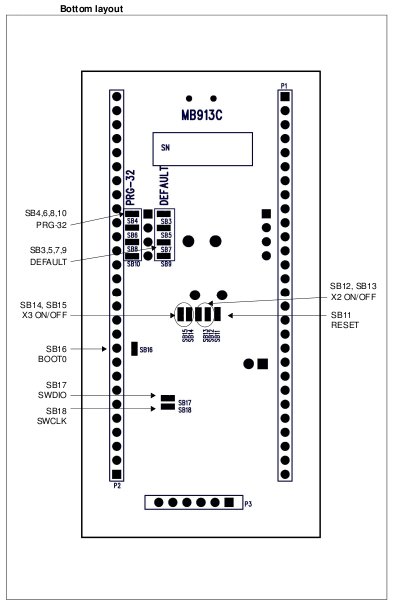

■ Extension header for all I/Os
■ Reduced system cost:
■ Powered by USB cable between PC and STM32 Value line Discovery
■ Embedded debugger ST-Link, JTAG SWD debug support
■ USB interface for programming and debugging
■ Red LED for USB communication, red LED for 3.3 volts power on
■ Can be externally powered by 5 volts or 3 volts
■ Can power supply external application with 5 volts and 3 volts
■ Two user LED, LD3 and LD4 (green and blue)
■ Two push buttons (User and Reset)
■ Extension header for all I/Os
■ Reduced system cost:
–
Built-in POR, PDR, LVD, watchdog timer.
– Factory trimmed 8 MHz RC oscillator and 40 kHz for RTC and watchdog.
– On-chip 12-bit dual channel DAC with DMA support and output buffers.
■ Perfect fit for control applications:
Up to seven PWM 16-bit timers including advanced
control timer for a total of 26 channels.– Factory trimmed 8 MHz RC oscillator and 40 kHz for RTC and watchdog.
– On-chip 12-bit dual channel DAC with DMA support and output buffers.
■ Ideal for appliance control applications including induction cooking:
Three independent PWM
16-bit timers with complementary output and dead-time generation
(Motor Control).
■
Reduced design complexity and
minimized CPU, peripheral and memory use:
Consumer
electronics control (CEC) peripheral.
■
Extensive connectivity capability:
CEC, 400 kHz I2C, up to12
Mbit/s master and slave SPI, up to 3 Mbit/s USART.
■
Achieves superior performance with
16-bit code density:
ARM
Cortex-M3 Thumb-2 32-bit
instruction set and 7-channel DMA.
■
Eases Flash memory integrity check: CRC (cyclic redundancy check) with
DMA support.
- Tutorial that explain how to start new project using Free ATOLLIC Lite and STM32 Discovery is here.
- How to use STM32 Library Examples in ATOLLIC TrueSTUDIO Lite and STM32 Discovery is here.
- AN3268 - STM32VLDISCOVERY firmware package is here.
The purpose of this application note is to describe the STM32VLDISCOVERY package structure and provide example and short descriptions of:
■ STM32VLDISCOVERY firmware demonstration.
■ Examples covering some of the STM32 value line features.
■ Standard firmware library.
- How to use the Examples enclosed in AN3268 on Atollic is here
Official Link: http://www.st.com/internet/evalboard/product/250863.jsp
STM32 Value Line Discovery forum: https://my.st.com/public/STe2ecommunities/mcu/Lists/STM32VLDiscovery/AllItems.aspx
