June 2015 MEMS and Sensors news from
STMicroelectronics
- New SDK to jump-start
your design with MEMS sensors and Bluetooth Smart®

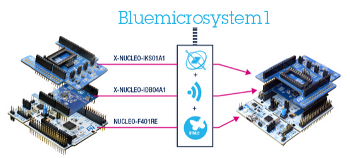

BlueMicrosystem is a comprehensive software development framework born to complement the STM32 Nucleo motherboard (NUCLEO-F401RE) and two expansion boards for sensors (X-NUCLEO-IKS01A1) and for Bluetooth Smart® (X-NUCLEO-IDB04A1).
This SDK includes the MotionFX sensor fusion algorithm to combine all sensor outputs and relevant software layers to stream processed data in real-time to a smartphone via Bluetooth Smart®.
It also contains implementation examples for both Android and iOS operating systems.
Start developing your connected apps for remote sensor nodes in just a few clicks.
- Ultra-low-power,
3-axis accelerometer with 10-years longevity
The new IIS328DQ high-performance, 3-axis accelerometer is recommended for industrial applications requiring an extended temperature range and long lifespan.
It features ultra-low-power operational modes that allow advanced power-saving and smart sleep-to-wakeup functions.
The IIS328DQ has dynamic, user-selectable full-scales of ±2g/±4g/±8g and is capable of measuring accelerations with output data rates from 0.5 Hz to 1 kHz.
Available in a 4x4 mm package, the IIS328DQ is guaranteed to operate over a temperature range from -40 to +105 °C.
- New all-in-one board
to explore multiple MEMS and environmental sensors
The new X-NUCLEO-IKS01A1 expansion board has an on-board:
- LSM6DS0 3-axis accelerometer and a 3-axis gyroscope
- LIS3MDL 3-axis magnetometer
- HTS221 humidity and temperature sensor
- LPS25HB pressure sensor
The X-NUCLEO-IKS01A1 is equipped with Arduino UNO R3 and 24-pin DIL connectors, which are used in all ST’s MEMS adapters and make the board scalable to test other sensors.
- VL6180X proximity,
gesture and ambient light sensing module
Take a high-speed train when developing your time-of-flight applications.
The VL6180X-SATEL kit includes two small satellite boards with a VL6180X proximity sensor, gesture and ambient light sensing module as well as an LDO, which can be easily integrated into your application thanks to their tiny form factor.
Using multiple satellites in your device will unlock innovative use-cases like gesture recognition.
To help you get started, a complete development eco-system is available including two user-friendly Nucleo evaluation packs and a complete firmware package.
- Evaluate ST’s new
iNEMO inertial module with 6DoF in a compact footprint
The STEVAL-MKI160V1 is a standard DIL24 socket adapter board designed for the evaluation of the LSM6DS3, a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope.
It is an ideal solution for system prototyping and device evaluation and it can be plugged into the STEVAL-MKI109V2 motherboard or the X-NUCLEO-IKS01A1 board for fast prototyping.
The adapter enables the complete LSM6DS3 pinout and comes together with decoupling capacitors on the VDD power supply line.
The LSM6DS3 has an always-on low-power mode for an optimal motion experience in consumer applications.
- ST launches 10 years
longevity program for Motion MEMS
The 10 years longevity commitment program assures, on selected parts, continuity and stability of supply for ST customers, especially those that design industrial applications and require long-term product availability.
The 10 years longevity commitment begins at the time of product launch.
The first MEMS joining the program are ST’s new accelerometers and a gyroscope specifically intended for harsh industrial environments often characterized by extended temperature ranges and a high level of shocks and vibrations.
UP
June 2015 News and Updates from
STMicroelectronics
- 1200 V IGBT S series
features the industry’s lowest saturation voltage
Ideal for use in hard-switching topologies up to 8 kHz, ST’s 1200 V IGBT S series features the industry’s lowest VCE(sat).
Available in 15 A, 25 A and 40 A current ratings, they increase the efficiency of power supplies, welders and industrial motor drive applications thanks to the optimal trade-off between conduction and switching performance combined with outstanding robustness and EMI characteristics.
Based on the 3rd generation of trench-gate field-stop technology, they feature a 175 °C maximum operating junction temperature, a 10 µs (min.) short-circuit withstand time and a wide safe operating area (SOA).
- Evaluate ST’s
long-life, paper-thin, rechargeable, solid-state batteries
Two kits are now available for evaluating and supporting the design of tiny technology and IoT devices based on ST’s EFL700A39 EnFilm™ thin-film batteries.
The EFL700EVALKIT evaluation kit enables discovery of the performance of the EFL700A39 by monitoring the voltage and the dynamic charge / discharge current in real use-case conditions.
The EFL700PMB power management board includes all the power management circuitry so the EFL700A39 can be directly connected and used in your application for rapid evaluation.
- Gain efficiency and
save components in your next power supply design
Switched-mode power supply design is a relentless quest for higher efficiency and lower component count.
You can get serious improvements in both by using the SRK2001, an adaptive synchronous rectification controller for LLC resonant converters in your next design.
Thanks to its advanced control logic, power MOSFET turn-on and turn-off timing is optimized for superior efficiency at all load conditions.
Moreover, up to 6 external components, typically required to compensate for power MOSFET stray inductance, can be saved.
The SRK2001 is ideally suited for all-in-one PCs, servers, game consoles or high-end TVs.
- Highly compact ESD
protection in 01005 package revolutionizes IoT applications
ST's ESDAVLC12-1BV2 is a silicon-based ESD protection device supplied in the industry’s smallest standard surface-mount package of 0.4 x 0.2 mm.
It fully complies with ESD standard IEC 61000-4-2. Although other types of ESD protectors – such as varistors – are available in the same size, these generally do not protect as efficiently.
The ESDAVLC12-1BV2 clamping voltage is half that of the nearest competing varistors in the same size package, offering greater safety for the internal components.
- New 800 V
overvoltage-protected AC switch gets a smaller package
ST’s new ACS108-8SUN is an overvoltage-protected AC switch designed to control loads up to 0.8 A. Featuring 800 V VDRM and VRRM, improved dV/dt and (dI/dt)c, and a low IGT of 10 mA, it withstands 2 kV EFT and surge, in full compliance with IEC 61000-4-4 and -5-5 standards yet interfaces directly with a microcontroller.
Its SMBFlat-3L package brings an Rth(j-t) 40% better than an SOT-223. The ACS108-8SUN helps reduce component count by 80% – removing the need for external devices like RC snubbers and / or varistors.
A clever PCB lay-out can allow use of both SMBFlat-3L and SOT-223 versions on the same PCB.
- New 5-line IPAD™ EMI
filters and ESD protects side keys
Sidekeys – intended for volume control or scroll functions – in smartphones and wearable devices are major entry doors for electrostatic discharges that can destroy the portable device.
The new IPAD EMIF05-SK01F3 is an application-specific integrated passive component (ASIP) designed to filter EMI/RFI noise and to protect all systems subjected to electromagnetic interferences from ESD surges up to 15 kV.
The EMIF05-SK01F3 is housed in a 0.5 mm-thick 1.2 x 1.5 mm flip-chip package.
June
2015 Automotive and transportation news from
STMicroelectronics
- gapDRIVE™ isolated
driver for IGBTs and MOSFETs is now AEC-Q100 qualified
The STGAP1S, a galvanically-isolated single-gate driver for MOSFETs and IGBTs, is a dependable solution for switched-mode power converters where an isolation of up to 1500 V is required.
It features sophisticated and largely programmable protection functions such as Miller clamp, desaturation detection, overcurrent detection, 2-level turn-off, VCE overvoltage protection, and both under- and over-voltage lockout (UVLO and OVLO) circuits to help design with robustness and reliability in mind.
All this is accessible for the design of in-vehicle applications, such as traction inverters in electric vehicles, as the STGAP1S is now fully AEC-Q100 qualified.
- First 1200 V
automotive-grade SCR ensures ultra-reliable power conversion
The TN5050H-12WY is optimized for a wide range of AC/DC converter applications, including electric vehicles and other battery chargers, renewable energy inverters, solid-state relays and UPS. It offers superior surge-current handling (580 A), power dissipation capability (Rth=0.3 °C/W, Tj max=150 °C), and overvoltage robustness up to 1300 V, while uniquely enhancing reliability, quality, and supply of components with the AEC-Q101 certification.
This new SCR enables designers to achieve the same level of efficiency as traditional diode bridges, but with lower cost and a smaller PCB footprint.
- Advanced automotive
EEPROMs with advanced data security
Both ST’s SPI and I2C bus Advanced Automotive EEPROM series provide enhanced data protection through a specific set of read/write/lock instructions that enable storage of sensitive data including traceability, serial number, and unique customer ID.
Moreover, the 4 million erase/write cycle endurance enables storage of frequently updated data such as key parameters that change according to environmental conditions (data-logging), avoiding memory-hungry strategies for extending EEPROM lifetime.
The 50-year data retention is guaranteed, even at a constant 125 °C, ensuring the parameters remain available well beyond the useful life of the vehicle.
- Jump start your next
in-vehicle switching regulator design
Getting started with your next switching regulator for dashboard, car audio system or in-vehicle sensor module design is easier than ever before with STEVAL-ISA158V1 evaluation board that puts at your fingertips all the capabilities of the A6986, an AEC-Q100-qualified step-down synchronous switching regulator.
Capable of delivering up to 2 A, the A6986 can withstand cold-crank and load-dump specifications for in-vehicle applications thanks to a wide input voltage range and the ability to work at 100% duty cycle while its low-consumption and low-noise modes can help meet energy-efficiency and noise-design specifications as required by most sensitive car electronic systems.
- AEC-Q101-qualified
ESD protection shields automotive high-speed links
The ESDAXLC6-1BT2Y is a single-line ESD protection device designed for automotive equipment. It is suited for all types of applications including antennas and high-speed datalines as it combines an ultra-low capacitance with a 12 GHz bandwidth.
Its ESD capability exceeds both ISO 10605 and IEC 61000-4-2 level 4 standards, with respectively 12 and 16 kV contact discharge while the air discharge capability exceeds 30 kV.
Housed in a thin SOD-882T package, it is ideal for use on high-density boards.
- AEC-Q101-qualified
load-dump protection series keeps your board safe
The LDP01Y series protects car or truck electronic boards from surges defined in the ISO 7637-2 pulse 5a/5b and ISO 16750-2 test A/B standards.
With stand-off voltages rated from 22 to 70 V, it is ideal to protect any type of sensitive circuit.
As many variations are described in ISO 7637-2 pulse 5a/5b and ISO 16750-2 – due to surge duration, serial resistance in the circuit and surge voltage range – the datasheet provides four curves to accurately define the surge characteristics and select the appropriate LDP01Y device.
The LDP01Y series is supplied in a D2PAK package.
- AEC-Q101 40 V, 6 A
dual-Schottky diodes for SMPS and other power converters
Housed in a DPAK package, the STPS640CBY-TR is intended for use in low- and medium-voltage applications, and in particular in high-switching-frequency circuits where low switching losses are key (freewheeling and polarity protection). The Schottky diodes are connected in a common-cathode configuration and suited for electronic control modules, DC/DC converters and motor drives, in automotive applications and other functions in harsh environments, thanks to an operating junction temperature range from -40 to + 150 °C.
May
2015 Microcontroller news from
STMicroelectronics
UP- How to take full
advantage of the low-power UART in the STM32L0
Equipped with a low-power UART (LPUART), STM32L0 MCUs enable your application to stay connected at outstandingly low consumption levels.
The LPUART can run on a low-power clock while the device is in a power-saving mode and wake up the system upon a received frame event or an address match.
To support engineers in squeezing the last nanoampere out of their designs, a new application note (AN4635) is available which – complemented by the X-CUBE-LPUART software examples – guides you towards the optimum use of the LPUART with the help of numerous case studies.
- STM32CubeMX, a powerful tool to reduce
power consumption
The power consumption calculator included in the STM32CubeMX MCU configuration tool provides an easy way to estimate the power consumption of all STM32 MCUs, and especially the STM32L0 or STM32L1 series, in your application.
It supports design engineers in finding the optimum device settings for the lowest overall power consumption and a maximum of battery life.
With the STM32CubeMX revision 4.7, the accuracy of the power consumption calculation has been further increased, wakeup times are now taken into consideration and the power-saving sequence can be checked for invalid transitions.
- Explore the rich
connectivity of high-performance, energy-efficient STM32F446 MCUs
A new STM32F446 evaluation board helps developers prototype advanced and innovative applications based on ST’s high-performance and highly-integrated STM32F446 MCU platform.
Taking full advantage of the embedded STM32F446 MCU, the new evaluation board offers SDRAM and Quad-SPI Flash memories and delivers category-leading processing capabilities of 608 CoreMark and 225 DMIPS.
Benefitting from the MCU's rich connectivity, the board includes a camera module, CAN and USB HS and FS interfaces as well as a TFT color LCD and extended audio features with SPDIF, Digital Microphones, audio DAC and Audio jacks.
May 2015 Motor control news from
STMicroelectronics
UP- Explore the gapDRIVE™
isolated IGBT and MOSFET driver demo board
A complete evaluation suite is now available to quickly delve into the STGAP1S galvanically-isolated single MOSFET and IGBT driver and evaluate its performance and capabilities.
At its core is the EVALSTGAP1S demo board fitted with an IGBT in a TO247 package and two diagnostic LEDs that can be used in standalone or multiple modes.
To access internal registers and fine tune the STGAP1S’s power switch characteristics for your application requirements, simply install the STSW-STGAP001 graphical user interface and evaluation software and connect the EVALSTGAP1S to a PC through the STEVAL-PCC009V2 interface board.
- A 600 V rated IGBT
and MOSFET half-bridge gate driver
The L6491D is a high-voltage device that can handle up to 600 V for driving IGBTs or MOSFETs in a half-bridge configuration in typical off-line switched-mode converters for motor control, power supply or lighting applications.
With its 4 A drive capability, it’s perfectly suited for usage in a wide range of converter power outputs while the integrated boot-strap driver and protection comparator, useful for overcurrent or over-temperature protection, help reduce the component count.
- Evaluate ST’s new
FOC-compatible power board up to 1 kW
The STEVAL-IHM023V3 evaluation board is a 3-phase motor control AC-DC inverter bridge designed to drive two-or three-phase motors up to 1000 W with or without sensors.
The main products on board are the STGP10H60DF 600 V IGBT and the L6390 high-voltage driver featuring an operation amplifier for advanced current sensing and an integrated comparator enabling hardware protection such as over-current and over-temperature.
Thanks to the accuracy of the current feedback and the advanced characteristics, the system well addresses field-oriented control (FOC) application requirements.
- 80 V STripFET F7
MOSFETs in H2PAK for high-current motor control designs
Increase the efficiency of your next high-current motor control design with ST’s latest 80 V STripFET F7 MOSFETs assembled in high-current (up to 200 A), low thermal resistance, 2- and 6-lead H2PAK packages.
They combine a very low on-state resistance (1.7 mOhm) with an optimized switching behavior in order to meet stringent efficiency requirements. Excellent EMI performance and high avalanche ruggedness enable more reliable and robust designs. - Drive high-power
stepper motors with superior accuracy and smoothness
PowerSTEP01 is an integrated stepper motor driver that combines diverse semiconductor technologies to deliver unprecedented results.
The powerSTEP01’s control core supports 128 micro-step operations with advanced current control and is completely configurable through a standard SPI port. Its dual full-bridge power stage is built with eight, 10 A rated, discrete power MOSFETs with 16 mOhm RDS(on) for high efficiency that are fully protected against overcurrent and short-circuit conditions with non-dissipative sensing. With these features, the powerSTEP01 can handle an astounding 500 W/cm2 while delivering superior accuracy and motion smoothness.
May 2015 News and Updates from
STMicroelectronics
UP
- BlueNRG-MS
Bluetooth low energy network processor for smart IoT devices
Bluetooth 4.1 compliant, the BlueNRG-MS IC exhibits an unparalleled low current consumption, ideal for connecting smart Internet of Things devices that need to operate for years while being powered from a small coin cell battery.
It runs the complete Bluetooth low energy stack on an embedded Cortex-M0 core and it is also connected through a proprietary SPI-based interface to a host MCU running the application.
- High-efficiency, Low-noise, buck switching converter
Use the STEVAL-ISA159V1 evaluation board to explore the L6984, a high-efficiency monolithic synchronous step-down regulator, able to deliver up to 400 mA with an input voltage from 4.5 to 36 V.
The L6984 has a low-consumption mode (LCM) that boosts efficiency at light loads and a low-noise mode (LNM) for noise-sensitive applications like powering sensors in factory automation.
The bill of materials and the board’s layout are optimized for efficient integration into your design and a considerably reduced time to market: a bonus for appliances or audio systems in both car and home applications.
- New series of
Industrial-Plus EEPROMs operate up to 105 °C
Operating up to 105 °C, the new Industrial-Plus series of Serial EEPROMs is designed for advanced industrial control and networking equipment, smart lighting systems and power switches, as well as other harsh environment applications.
A rapid, 4 ms write time and bus frequencies up to 20 MHz make them ideal where high-speed parameter storage and rapid data exchange is needed.
With 34 new part numbers with 2K to 512 K bits of memory, the M24 (I2C) and M95 (SPI) series, both guaranteed for 4 million erase/write cycles, enable equipment used in challenging thermal conditions to benefit from enhanced-reliability devices.
- Innovative ESD
protection and EMI filtering for sensitive audio ICs
The 3.5 mm audio jack is a must-have interface to connect audio accessories.
It is also the entry point for ESD that can destroy sensitive audio ICs.
To ensure high-quality audio, EMI must also be filtered.
The EMIF05-AUD02F3 provides premium ESD protection reducing IEC 61000-4-2 level 4 (+/- 8 kV) ESD strikes down to 15.3 V.
Its EMI filter prevents noise issues by providing -20 dB attenuation from 15 MHz to 2.5 GHz.
All housed in a compact WLCSP package it has a PCB footprint of only 1.83 mm² thanks to ST’s IPAD™ technology which integrates multiple passive devices in a single silicon die.
- P-channel MOSFET
portfolio extended with new trench-gate devices
Featuring a very low on-state resistance (less than 22.5 mΩ for a -20 V device in the 2x2 mm PowerFLAT micro-package) and figure of merit (FoM), ST has extended its offering of P-channel MOSFETs with a breakdown voltage from -100 V up to -20 V.
The latest trench-gate P-channel MOSFETs help simplify designs and meet power and efficiency targets by using fewer devices and smaller package sizes.
May 2015 Power Management news from STMicroelectronics
- The STEVAL-ILL069V1 evaluation
board provides a complete solution for a 48V / 35W isolated fly-back
converter for wide input main voltages, ideally suited for LED driver
applications.
Built around the HVLED001 high performance peak current mode controller, it benefits from its unique features to provide high power factor and low total harmonic distortion (THD) together with high full load efficiency yet providing a no-load consumption of less than 400 mW.
The HVLED001's extensive protection scheme ensures protection against input overvoltage, output short circuit and overload conditions and includes an auto-restart feature.
- STEVAL-ISB032V1
is an evaluation board for charging
single-cell Li-Ion batteries
based on ST's STNS01 linear
battery charger.
Input voltage comes from an USB connector and two outputs are available: one for the main load generated with a 1% precise LDO regulator of 3.1 V with 100 mA capability and a second one for the system obtained from input (or battery) voltage.
The STNS01 features a CC/CV (linear) charging algorithm with programmable fast-charge current.
The power switchover between input and battery is automatic and so are protections against over-charge/discharge/current/temperature conditions.
- New SCR optimized for rugged circuit breaker
applications
The newcomer to ST’s logic level thyristor family, the TS110-8, is dedicated to miniature circuit breakers.
It enables designers to reach a very low power consumption and a high robustness design thanks to its low leakage current and its 1250 V direct surge voltage capability.
It provides high off-state immunity (dV/dt=200 V/μs) that ensures the breaker does not trip in case of an electrical fast transient (EFT) on the mains.
The TS110-8 is available in the through-hole TO92 package, with two pinout versions, and in the surface-mount 3-lead SMBFlat-3L package.
- Explore our 3.3 V/3 A
high-efficiency step-down DC-DC converter
The STEVAL-ISA152V1 product evaluation board lets you quickly dive deep into the L7987 step-down switching regulator capable of working at nearly 100% duty-cycle with high efficiency even at the lightest loads thanks to its switch-over and pulse-skipping features.
The board implements a complete solution for a 4.5 to 60 V input voltage to 3.3 V / 3 A converter fully protected against overcurrent and overtemperature conditions. Multiple devices can be synchronized to prevent beating noise in low noise applications.
UP
April
2015 Microcontroller news from STMicroelectronics
UP
New STM32L1 devices offer more RAM with
less power consumption
Looking for more RAM memory and/or improved power consumption?
Discover our new STM32L1 devices that are pin-to-pin compatible with the existing MCUs. Migration guides will help you easily benefit from the new features and improved power consumption in dynamic and static states.
More than ever, our large and proven ultra-low-power MCU portfolio helps you release your creativity in designing battery-operated applications in healthcare, fitness, smart home, metering or industrial sectors.
- New IAR embedded
workbench version squeezes STM8 code even smaller
STM8 developers striving to drive the cost-effectiveness of their applications to the next level can rely on an up-to-date ecosystem.
A new version (2.10) of the IAR Embedded Workbench for ST’s line of 8-bit core microcontrollers is now available.
The high-performance IAR C/C++ compiler creates the most compact code in the industry and, by making use of the newly introduced possibility of selecting smaller match functions, developers can squeeze their code even more.
Version 2.10 also includes updated development and debugging guides, as well as support for the most recent STM8 devices.
- VIDEO - Getting
started with STM32F334 for digital power conversion
ST’s STM32F334 MCUs are specifically tailored for digital power conversion.
By combining the advanced computational power of the Cortex®-M4 and its FPU with advanced peripherals, such as ultra-fast ADCs (5 MSPS), ultra-fast comparators (25 ns) and hi-res timer (217 ps) along with a complex waveform builder and multi-event handler, they are well suited for applications such as D-SMPS, lighting, welding, inverters, etc.
This video highlights their key features and shows some practical examples (lighting, buck boost) using the STM32F334 Discovery kit, demonstrating how easy it is develop digital power conversion applications.
- VIDEO - Explore the
features of our ultra-low-power STM32L0 MCUs and Discovery kit
This video showcases the STM32L053 discovery kit, the quickest way to evaluate the ultra-low-power microcontrollers of the STM32L0 series and discover added-value features such as USB and touch sensing.
Its exclusive combination of an ARM® Cortex®-M0+ core and ultra-low-power features, makes the STM32L0 series the best fit for applications running on batteries or by energy harvesting.
In addition to having the industry's lowest power consumption at 125 °C, it offers dynamic voltage scaling, an ultra-low-power clock oscillator, LCD interface, comparator, DAC, hardware encryption and crystal-less USB.
- VIDEO - STM32Cube
comprehensive software tool now covers all STM32 series
STM32Cube is a set of embedded software collections, containing not only peripheral drivers but also a consistent set of middleware libraries including USB, graphics, RTOS, touch sensing, TCP/IP, etc. It also includes the PC-based STM32CubeMX software tool that helps users configure their devices and software, solve conflicts, and generate code matching their choices. With the latest addition of support for the STM32F1 series, STM32Cube is now available for the entire STM32 MCU portfolio. STM32Cube removes the hurdles of configuration and portability, allowing customers to focus on developing added value for their applications.
April
2015 MEMS and Sensors news from STMicroelectronics
UP- MEMS accelerometer
and 6-axis combo help reduce design cycles
The LIS2DH12 accelerometer features user-selectable full scales of ±2/±4/±8/±16g and ultra-low power consumption down to 2 μA. Housed in a small 2x2x1 mm, 12-lead LGA package, it is compatible with the LSM303C 6-axis combo in terms of footprint and pinout structure.
This lets manufacturers mount on the same PCB a single accelerometer or an accelerometer plus a magnetometer, reducing the design cycle and optimizing costs.
- Tiny iNEMO
“always-on” SIP delivers industry-leading noise performance
The LSM6DS3 iNEMO® 6-axis system-in-package sets new standards for power efficiency, signal noise, and performance in motion sensors.
It is 20% more energy-efficient than other alternative combos, with power consumption down to 0.6mA in always-on mode. In addition, the LSM6DS3 features an angular rate noise density of only 0.007 dps/√Hz.
This 6-axis SIP creates new possibilities for the development of battery-powered smart sensor systems to be embedded in wearables, mobile devices and innovative objects for IoT.
- Low-power high-g
accelerometer allows to prevent sport-related injuries
The H3LIS331DL offers three selectable full scales (100, 200 and 400 g) to measure very high accelerations along three axes at ultra-low current consumption (300 µA in Active mode and just 10 µA in low-power mode).
Delivered in a standard 3x3x1 mm3 package, this accelerometer addresses the need for precise shock detection in space- and power-constrained applications such as impact measurement in sports (concussion detection), car black boxes, augmented sports, industrial equipment condition monitoring, shock detection in tools and portable instrumentation or parcel monitoring (insurance purposes)
- Save money and unleash your creativity with
the INEMO-M1 discovery bundle kit
ST’s STEVAL-MKI121V1B discovery bundle kit comes with a STEVAL-MKI121V1 evaluation board, an INEMO-M1 system-on-board and a complete software development kit. The evaluation board will enable you to quickly and easily evaluate the performance of the 9-axis INEMO-M1 SoB which integrates a 6-axis geomagnetic module, a 3-axis gyro and a 32-bit STM32.
The evaluation board also includes an LPS331AP pressure sensor, resulting in a 10 degrees-of-freedom open platform for fast inertial application development.
You can then use the extra INEMO-M1 SoB to unleash your creativity and develop your own unique application.
- Replay our FlightSense™ proximity sensor
Google Hangout
Missed our Google Hangout or just want to watch it again?
The complete video is available about the VL6180X, our 3-in-1 ultra-low-power proximity sensor, gesture recognition and ambient light sensing module.
The eva-boards are here.
April
2015 News and Updates from STMicroelectronics
UP- New high-performance
switching regulators for fail-safe systems
The new L7987 and L7987L are monolithic buck switching regulators that deliver up to 3A and 2A respectively with an input voltage up to 61V.
Able to work with a 100% duty cycle, they help meet fail-safe requirements for industrial systems including PLCs. In addition, pulse-by-pulse current sensing with digital frequency foldback provides excellent protection in a wide range of load conditions.
These regulators feature a switching frequency that can go as high as 1.5MHz.
Their adjustable current limitation helps minimize inductor size, thus reducing application cost and size and improving efficiency.
- 650V MDmesh™ M2
MOSFET features dedicated control pin for increased switching efficiency
The STW56N65M2-4 is ST’s first 650 V MDmesh™ M2 MOSFET assembled in the TO247-4 package which features an extra driving source pin. This allows separating the path of the power supply from that of the driving signal, greatly reducing switching losses.
The lower turn-on and turn-off losses combined with the excellent Qg and low on-resistance make this 0.062 Ohm MOSFET the ideal choice for high-power PFC circuits in telecom server applications.
The reduced switching losses enable designers to use higher switching frequencies, resulting in more compact designs.
- Meet the smallest
2-channel filter for ZigBee® RF4CE devices
ST’s new DLPF-GP-01D3 is a tiny dual low-pass filter single-chip solution complementing the GreenPeak GP540 and GP561 RF4CE communication controllers for TVs, STBs, doors, alarms, lighting, etc. Its two integrated filters provide high attenuation outside the 2.4 to 2.5 GHz range and have low in-bandwidth insertion and return loss.
This new ST IPD helps designers meet ZigBee RF4CE specifications, simplify the circuit design, save cost and PCB area. Its 1.2 x 3.4 mm footprint and below 560 μm height enable the filter to be built in less than 1/10th the PCB space of a conventional discrete circuit.
- Tiny advanced ESD
protection for interfaces up to 10 Gbit/s
Need to alleviate the increasing sensitivity to ESD events from the user through the external connector of high-speed differential-line transceivers such as USB 3.1 (10 Gbit/s) or HDMI 2.0 4K (5.94 Gbit/s) interfaces? ST’s new HSP051-4N10 ESD array is compatible with USB Type C connectors and protects ICs from contact discharges up to 8 kV as defined by IEC 61000-4-2 Level 4, with very low dynamic resistance (0.48 Ω). Its 1.9 mm² and 4-channel flow-through µQFN-10L package is only 0.32 mm thick and 0.4 mm pitch, and minimizes impedance mismatch. With only 0.35 pF line capacitance, signal integrity is preserved, providing a 10 GHz bandwidth.
- New ultrafast 1200 V
rectifiers optimized for high-power industrial supplies
ST’s new ‘S12’ 1200 V ultrafast rectifier series is designed with soft recovery characteristics, a low leakage current, narrow parametric spread and intrinsic ruggedness.
Rated at 8, 15, 30 or 75 A, these devices are ideal for heavy-duty applications requiring long-term reliability and fit perfectly in industrial power supplies, motor control and similar mission-critical systems. Their low recovery charge and soft recovery reduce ringing and electrical noise as well as power losses. The thermal runaway guard band is also a key advantage.
April 2015 Analog
and Audio news from STMicroelectronics
UP- New generation of
wide-bandwidth 16 V CMOS op amps
The TSX56x series of op amps benefits from ST's 16 V CMOS technology to offer state-of-the-art accuracy and performance in the smallest industrial packages.
The TSX56x series offers an outstanding speed/power consumption ratio, having a gain bandwidth product of 900 kHz while consuming only 250 μA at 16 V. Such features make the TSX56x series ideal for sensor interfaces and industrial signal conditioning. The wide temperature range and high ESD tolerance ease use in harsh automotive applications.
- USB demo board for
top-port digital MEMS audio sensor and decoder
The STEVAL-MKI138V1 STAudioHub USB interface board demonstrates the decoding and streaming of digital MEMS microphone outputs.
The board hosts two MP34DT01 top-port digital microphones and a STM32F107RC microcontroller.
The microphones sense the sound pressure created by acoustic waves, converts this into digital signals and then sends them in PDM format to the MCU that decodes the signals and streams the audio to a PC via USB.
- New top-port
microphone with best-in-class audio for mobile applications
This new MP34DT01-M microphone features a top-port audio sensor as well as 61 dB SNR and flat frequency response in the full 20–20,000 Hz audio band.
Available in an HCLGA (3x4x1.06 mm) metal package which is required for most final applications, it perfectly matches the needs of clever speech-recognition systems for voice-controlled software and electronic-assistant applications used in new consumer applications, where improving audio intelligibility without increasing CPU workload is a key factor. The device is also suitable for advanced applications such as sound-level meters that require high dynamic range.
March
2015 Microcontroller news from STMicroelectronics
UP- New STM32F446 MCU
line delivers high performance and compact memory sizes
The STM32F446 high-performance MCU line has started volume production.
This new line introduces new choices for designers by combining 225 DMIPS processing performance, compact embedded Flash with 256-Kbyte or 512-Kbyte options, 128 Kbytes of RAM and rich connectivity.
The STM32F446 allows seamless memory-extension thanks to FMC and Dual-mode Quad SPI interfaces and offers extended audio connectivity with SPDIF-RX and support for up to 7 simultaneous I²S channels.
Power-efficient and highly-integrated, the STM32F446 enables richer consumer, industrial and medical applications.
All devices embed a Quad SPI memory interface, which is a specialized communication interface targeting Single, Dual or Quad SPI flash memories.
It can work in direct mode through registers, external flash status register polling mode and memory mapped mode.
Up to 256 Mbytes external flash are memory mapped, supporting 8, 16 and 32-bit access.
Code execution is supported.
The opcode and the frame format are fully programmable.
Communication can be either in Single Data Rate or Dual Data Rate.
- STM32L0
ultra-low-power MCUs: Complete ecosystem with 200+ free code examples
To boost design execution speed, ST provides more than 200 free ready-to-use code examples and libraries.
The examples explain how to get the best out of the MCU’s peripherals.
More than 70 examples are dedicated to the STM32L0 discovery kit and 60 to the STM32L0 Nucleo board.
Another 70+ highly-optimized C code examples are available to reach the lowest consumption and a minimum of memory footprint.
CMSIS-compliant direct register access reduces code overhead to a minimum.
The STM32CubeL0's comprehensive embedded software collection includes a large number of software examples.
Download STM32CubeL0
- Wide selection of free IDEs for STM32 users
STM32 users can now choose from three different integrated development environments, all free of charge, from leading vendors:
Ac6 System Workbench, CooCox CoIDE, Keil MDK-ARM for STM32L0xxx & STM32F0xx and mBed (mBed tutorials are here).
There are no code-size limitations and all the necessary STM32 configuration files for MCUs or boards are supported.
These IDE vendors provide technical support and regular software updates.
- How to migrate
STM32Cube-based application between two STM32 series
This video explains how to migrate a STM32 Cube-based application between different STM32 series.
It gives a step-by-step walkthrough of migrating a practical “reduced-cost” STM32F4 application to the STM32L0 series using STM32Cube with Keil's ARM integrated development environment.
- Bluetooth-controlled
robot made with NUCLEO-F072RB
This video shows how to build a Bluetooth-controlled robot based on the STM32F072 Nucleo development board (NUCLEO-F072RB). By adding the "Shield Bot" that embeds the motors, wheels, the battery and the power management system and a Bluetooth module for wireless communication, both from Seeed Studios, and firmware from the ARM mbed community (mBed tutorials are here), you can easily get your robot up and moving using a free customizable Android BT utility tool.
Developers will use the ARM mbed integrated development environment to customize their application.
March
2015 News and Updates from STMicroelectronics
UP- Sub-GHz RF modules
add out-of-the-box wireless connectivity
The SP1ML-868 (868 MHz SRD band) and SP1ML-915 (915 MHz ISM band) are ultra-low-power RF transceiver modules based on ST’s SPIRIT1 radio combining into a small form factor (10 x 14 mm) an antenna and crystal as well as an STM32L151RB microcontroller for application firmware.
They come with the firmware for serial cable replacement and AT commands for RF and data configuration through the UART interface and include a Serial Wire Debug (SWD) interface. SP1ML modules are an out-of-the-box solution to add wireless connectivity to a range of connected objects, dramatically reducing time to market as they are already FCC and CE approved.
- Explore ST’s new vacuum cleaner motor speed
control evaluation board
The STEVAL-IHM029V2 low-cost universal motor control evaluation board targets vacuum cleaners whose input power will be limited to 900 W in compliance with the 2009/125/EC directive starting in September 2017.
The board controls the universal motor speed by an STM8S103 microcontroller which varies the motor conduction phase angle thanks to the T1235T-8T, a high-performance 12 A 800 V T-series Triac.
This low-cost universal motor control demonstration board can also be used for motor speed control in food processors and power tools.
- New signal Schottky
diode in 0201 package for mobile applications
Housed in the 0.3 mm thick 0201 chip-scale package, ST’s BAT30F4 is especially suited for mobile and consumer applications where space is a constraint. Occupying a PCB area of less than 0.2 mm², the BAT30F4 is rated at a VRRM of 30 V with a current rating of 300 mA.
Its low forward voltage, leakage current and junction capacitance provide designers with an increased efficiency and power density solution and make it ideal for use as a reverse polarity protection or step-up DC-DC converter in mobile applications. Furthermore, it has the advantage of being RoHS compliant without exemption.
- Decompensated
high-precision, rail-to-rail, low-power op amps for improved performance
The TSX7191 offers low power consumption and exhibits an offset voltage less than 200 µV. Its rail-to-rail input and output functions, associated with an extended power supply range from 2.7 V to 16 V, allows the TSX7191 to be used in a wide range of applications. The TSX7191 perfectly fits automotive requirements: -40 to 125 °C temperature range and ability to sustain 4 kV ESD. TSX7191 is the decompensated version of the unity-gain stable TSX711. Available in a tiny SOT-23 package, its stability and outstanding GBW of 8.5 MHz are guaranteed for gains greater than 10.
March
2015 Automotive and transportation news from STMicroelectronics
UP- High-efficiency DC-DC
converter for in-vehicle applications
The A6986 is an AEC-Q100-qualified synchronous buck switching regulator able to deliver up to 2 A featuring a very low quiescent current and a low consumption mode that helps achieve high efficiency at light load conditions.
With its 38 V rating, the A6986 can stand load dump conditions while a switching frequency as high as 2 MHz makes it suitable for noise-sensitive applications like infotainment systems.
The A6986 comes in a compact HTSSOP16 package.
- Complete automotive
EEPROM product range in tiny, robust 2x3 mm WFDFPN8 package
ST's automotive-qualified serial EEPROMs provide the industry’s largest selection of densities in the tiny 2 x 3 mm WFDFPN8 package, ensuring maximum flexibility when designing radar and camera modules for advanced driver assistance systems (ADAS). Modules for 360° surround view systems, IR cameras, driver-assistance cameras, and short- and long-range radars are proliferating and must fit in tiny spaces putting high constraints on PCB size.
The tiny 2 x 3 mm outline allows the EEPROM to be part of the module and maintain high flexibility for late customization, monitoring, operating life parameter updates.
- Electro-thermal
simulator shortens time to market
TwisterSIM is free software that includes a smart interactive selector and a Dynamic Electro-Thermal simulator for low/high-side driver/switches and H-bridges for motor control using ST’s proprietary VIPower technology.
The tool is especially suited for the analysis of automotive lighting and body applications as it allows accurate dynamic simulations of load-compatibility, wiring-harness optimization, fault condition impact analysis, diagnostic behavior analysis and dynamic thermal behavior in just a few clicks.
TwisterSIM considerably reduces the time needed to select and evaluate a VIPower product in a specific application helping to reduce time to market.
- New
AEC-Q101-qualified 3 kW TVS brings safety to car electronics
The SM30TY automotive-grade TVS series is designed to protect sensitive automotive circuits against surges and ESD discharges. They are ideally suited in smart junction boxes, relay protections and power-lines that need to be protected against surges as defined in ISO 7637, ISO 16750-2, and against electrostatic discharges according to ISO 10605.
Its high thermal performance offers stable peak pulse power capability over a wide range of temperatures.
SM30TY devices are housed in SMC packages with a power density up to 62 W/mm² providing PCB space saving compared to equivalent load-dump solutions in D²PAK or larger packages.
- Upgrade to the latest
version of your free SPC5 Studio software
(SPC5 MCUs Software)
Try out our free-of-charge application development environment for SPC56 32-bit automotive MCUs.
You can now automatically patch generated code, tailoring it to your specific needs.
The latest release of Pin Map is the ideal tool to keep software application development in sync with PCB design, maintaining a unique source of information in a single application IDE.
Start saving application development time, download the 3.0 version from our website; the auto-update feature allows you to easily upgrade to the latest 3.4.2 release.
March
2015 - News and Updates from STMicroelectronics
UP- High-performance
controller for off-line LED lighting
Designing LED lighting solution is a relentless struggle to match ever challenging efficiency, cost and performance requirements.
The HVLED001 controller for offline LED lighting provides designers with an optimized solution for the mid -to-high power range.
The embedded high-voltage start-up helps to minimize stand-by power and to ensure very fast turn-on times (less than 500 ns) while the multiplier-based input section will enable very high power factors and low total harmonic distortion (TDH) essential to meet the most demanding regulations. The HVLED001 comes in a compact SSOP10 package.
Multi-standard controller for wireless battery charger (WBC)
transmitters
The STWBC digital controller for wireless battery charger (WBC) transmitters offers the most flexible and efficient solution for controlling power transfers from a WBC transmitter (TX) to a receiver (RX) in WBC-enabled phones, wearables, and other battery-powered devices that use electromagnetic induction for recharging.
As a member of the Qi Wireless Power Consortium and the Power Matters Alliance (PMA), ST ensures full compatibility with these leading wireless-charging protocols and is one of the first companies certified for the newest Qi 1.1.2 A11 standard.
STEVAL-ISB027V1 - Qi A11 wireless charger transmitter evaluation board based on STWBC
- I2PAKFP package
extends ST’s offering of super-junction high-voltage MOSFETs
ST’s 800 V MDmesh K5 series and 600 V MDmesh M2 series have been extended with the availability of the JEDEC-approved I2PAKFP (TO-281).
Compared to the TO-220FP, this fully-molded package is 30% shorter in body height, yet maintains the same level of thermal performance and electrical isolation. This makes it a perfect fit for compact LED driver applications and slim laptop adapters.
- SRTAG - Whether it's
for data sharing or wireless pairing, ST has the right NFC solution for
your application
Smart tags embedded in posters or other objects without a power supply can easily exchange data such as a URL to your cell phone or another NFC-compatible device.
Smart devices effortlessly exchange data in order to configure a Bluetooth or Wi-Fi connection, share contact information or even connect to a password-protected router.
ST has a full range of densities from 512 bits to 64 Kbits, a robust memory ensuring safe re-programming, 128-bit password protection and wide temperature range from -40 to +85 °C. Discover the full portfolio and simply connect the physical world to the virtual world.
- New IPAD™ filters EMI
and protects sidekeys from ESD up to +20 kV
Sidekeys, found in all electronic gadgets, are a major entry door for electrostatic discharges that can damage portable devices.
The EMIF04-1K030F3 is a 4-line EMI symmetrical (I/O) low-pass filter embedding a highly robust ESD protection, able to handle ESD strikes up to +20 kV (contact discharge).
Compliant with IEC 61000-4-2 Level 4 ESD protection, an +8 kV contact discharge is clamped down to a mere 5.5 V.
Replacing up to 12 discrete components, this filter is ideally suited for portable applications as it saves 60% PCB area. It's housed in a tiny 1.4 mm² chip-scale package.
March
2015 - Aerospace and Defense news from STMicroelectronics
UP- ST launches new
RobuST grade product range
After several decades of supplying both high-volume, high-quality automotive-qualified devices as well as high-reliability ESCC, JANS and QML space-qualified devices, ST has launched a new range of RobuST products suitable for the defense and aerospace markets. In addition to improved microcircuits, power semiconductors and specialty devices, RobuST products also benefit from a dedicated traceability documentation system (part marking, approval, and lifecycle management) as well as advanced design and manufacturing techniques to ensure the highest quality.
- First RobuST MOSFET
has RDS(on) of only 2.3 mΩ
The RTP315N10F7 N-channel Power MOSFET is packaged in a TO-220 package with a drain-source voltage (VDS) rated at 100 V and drain current at 180 A.
The STripFET™ F7 technology not only gives very low RDS(on) but also reduces internal capacitance and gate charge for faster and very efficient switching.
- RobuST positioning
receiver with 32-channels for GPS, Glonass and Galileo systems
The RSTA8088GA positioning receiver provides reliable positioning with triple constellation tracking thanks to its front-end with separate GPS, Galileo, QZSS and Glonass IF outputs.
It is offered with a complete firmware performing all positioning operations including tracking, acquisition, navigation and data output with no need for external memories. It is supplied in a 7 x 7 mm, VFQFPN56 package.
- RobuST single- and dual-core 32-bit microcontrollers
using Power Architecture®
The RPC5 32-bit microcontrollers are designed using Power Architecture® and ST’s embedded Flash technology.
They combine a scalable range of single and dual PowerPC e200 cores with innovative peripheral sets.
They are supported by the same comprehensive eco-system of evaluation, development tools and software as the automotive SPC5 family of products.
- RobuST op amps
operate up to 150°C
Low-power, precision single, dual and quad operational amplifiers with rail-to-rail input and output capability make up the RobuST op amp portfolio. Devices with an operating temperature up to 125°C and even 150°C are available.
The RT512A precision dual op amp provides an input offset voltage as low as 500 μV yet has a gain bandwidth of 3 MHz and 2 kV of ESD protection.
- RobuST low- and
high-side drivers with on-state resistance as low as 10 mΩ
The RobuST low- and high-side switches are based on ST’s proprietary VIPower and BCD mixed-signal power technologies.
Single, dual and octal devices have powerMOS switching elements with on-state resistance (RON) as low as 10 mΩ in a monolithic construction for small size, low weight and reduced energy losses even when driving very high currents.
Over-temperature, over-current, over-voltage protection and diagnostic features provide safety and reliability for applications.
- RobuST SPI-controlled
H-bridge drives motors at up to 8.6 A
The RL9958 is a fully protected SPI-controlled H-bridge, designed for the control of DC and stepper motors in safety-critical applications under extreme environmental conditions. The H-bridge is protected against over-temperature, short circuits and has an under-voltage lockout for VS and VDD, and for over-voltage on VDD. Detailed failure diagnostics are provided via the SPI and the current regulation threshold can be set via SPI from 2.5 A to 8.6 A (typ.), in 4 steps. Available in a Power SO20 package.
February
2015 Microcontroller news from STMicroelectronics
- New 512-Kbyte STM32F3 mixed-signal MCUs
raise the bar in system integration
Now with up to 512 Kbytes of Flash memory, the STM32F3 series, based on the Cortex®-M4 core and running at up to 72 MHz with 90 DMIPS, can support even more sophisticated applications.
New main features include a Flexible Memory Controller (FMC) with 36 MHz access on an 8/16-bit bus for various off-chip storage modules.
There are also up to three 144 MHz 16-bit motor-control timers for home appliances, power tools and industrial equipment.
This new product line can be evaluated on two different hardware boards:
NUCLEO-F303RE and STM32303E-EVAL.
LQFP, BGA or WLCSP package options are offered, covering from 32 to 144 pins
STM32Cube comprehensive software tool
now available for entire STM32 MCU portfolio
The STM32Cube initiative, initially announced for the STM32F4 series one year ago, is now fully completed, with the final addition of support for the STM32F1 series.
All new future STM32 series will benefit directly from full STM32Cube support, from Day One of their respective mass production state. The STM32Cube initiative not only brings all its embedded software portability power with all the STM32 family being covered, but it also carries the easiness of configuration of STM32 with startup phase code handling, thanks to its STM32CubeMX software tool on the PC.
- New IEC
61508-compliant safety design package for STM32 MCUs
STMicroelectronics and YOGITECH release the safety design package for STM32 microcontrollers, a flexible and affordable platform to dramatically reduce time and cost to build SIL2/3 STM32-based systems certified to the IEC 61508 functional-safety standard, available for STM32F0, F1, L1, F2, F3 and F4 series.
Customers can choose to create their own STL, referring to the STM32 safety manuals, available free of charge from st.com or use YOGITECH's licensed and TÜV certified fRSTL_STM32 libraries, a turnkey STL that accelerates certification while also minimizing test costs and development risks.
- Presentation - Tell me more about
32-bit STM32F0 Cortex®-M0 MCUs
The STM32F0 series is the entry level of the three series of the Mainstream family, where price effectiveness and simplicity are primary requirements.
The pin compatibility with the STM32F1 or STM32F3 series makes navigation across the board extremely convenient.
The STM32F0 series is well balanced for efficiency.
The STM32F0 series with a Cortex®-M0 core addresses cost-sensitive designs originally served by 8- or 16-bit microcontrollers.
The “STM32 at 32 cents” offer is a clear illustration of this capability.
UP
February
2015 MEMS and Sensors news from STMicroelectronics
- Highly-robust 3-axis
accelerometer delivers stable high-performance
The innovative mechanical structure of the LIS2HH12 accelerometer guarantees high performance even in thermally challenging conditions, such as inside super-slim smartphones and other portable devices running processing-intensive mobile apps.
The LIS2HH12 offers ±2, 4, 8g full scale acceleration, 16-bit digital output, 2 programmable interrupt generators and is housed in a 2 x 2 mm package.
The LIS2HH12 delivers precise, stable and responsive movement sensing for inclinometer, gesture recognition, gaming, indoor navigation and augmented reality applications.
- Evaluate high-performance 3-axis digital
accelerometer
The STEVAL-MKI110V1 is an adapter board designed to evaluate the H3LIS331DL, a low-power high performance 3-axis linear accelerometer with digital I2C/SPI serial interface standard output.
ST’s AIS328DQ, an ultra low-power high performance 3-axis linear accelerometer with digital I2C/SPI serial interface standard output. ST’s AIS328DQ accelerometer addresses the needs of applications like security systems, inertial navigation, telematic boxes, intelligent power saving, motion activated functions. The board, which can be plugged into a standard DIL 24 socket, offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.
- Small sensor detects
humidity and temperature variations in one shot
The HTS221 is an ultra-compact sensor that measures relative humidity and temperature. It is the first device of a new family of humidity sensors, providing the best trade-off between performance and current consumption, with fully calibrated outputs. Housed in a tiny but robust HLGA package (2 x 2 x 0.9 mm), the HTS221 is suitable for portable, wearable and IoT devices as well as for all applications where comfort, health and safety might be negatively impacted by humidity and temperature variations.
UP
February
2015 News and Updates from STMicroelectronics
- CO2 reduction enabled
by innovative car networking
By integrating both high-speed CAN with selective wake-up (HS-CAN ISO 11898-6) and LIN physical layers, the L99PM72GXP, a power management system IC, provides all the functions needed to build up a complete Electronic Control Unit (ECU) for car body applications.
Its features are tailored to particular uses such as in climate control modules and door control units as well as seat, trunk, trailer, sunroof and rear-view modules.
- Try out ST’s
Bluetooth low-energy hosted by a convenient USB dongle
The STEVAL-IDB003V1 is an evaluation board based on BlueNRG, a Bluetooth® 4.0 compliant wireless network processor able to support both master and slave functions.
The STEVAL-IDB003V1 main controller is an ultra-low-power STM32L MCU able to interface with BlueNRG but also available for custom application development through a JTAG connector that can be soldered on the on-board footprint.
The STEVAL-IDB003V1 has a USB connector for PC GUI interaction and firmware updates. Its maximum transmission power reaches +8 dBm. Specific dedicated apps are available on both iTunes and Google Play online stores. More info are here.
- New HDMI 2.0 IPAD
series for fastest ultra-HD data rates
ST’s new HDMI2C1 series of HDMI™ signal-conditioning and protection ICs feature a low clamping voltage of 10 V and a fast response time of 30 ns that prevents unwanted transients from damaging the latest HDMI chips.
Integrated ESD protection with a bandwidth of 10 GHz passes high-speed 4K signals without distortion.
They can save 80% of PCB space compared to discrete protection components and have pin assignments optimized for use with economical single- or two-layer boards to accelerate time to market for fast-moving consumer products such as Ultra-HD set-top boxes and Blu-ray players.
UP
February
2015 Power Management news from STMicroelectronics
UP- Simplify your design
with ST’s latest 1200 V SiC MOSFET
With an industry-leading junction temperature rating of 200 °C, the 1200 V, 215 mΩ SCT20N120 extends ST’s portfolio of SiC MOSFETs.
It allows switching frequencies up to three-times higher than similar-rated silicon IGBTs, resulting in more compact, reliable and efficient designs in applications such as solar inverters, high-voltage power supplies and high-efficiency drives.
- Upgrade your street lighting solutions with
digital control
The STEVAL-ILL066V1 evaluation board is a complete and configurable solution that manages a 100 W single LED string using the STLUX385A digital controller to manage two stages of power conversion.
The LED current is adjusted using a primary side regulation (PSR) control technique achieving 92% efficiency during full load while maintaining a low power consumption (< 200 mW) during controller idle periods.
The LED brightness can be dimmed by controlling the LED current down to 1% with tight resolution.
Communication interfaces such as DALI and UART are present as well as an insulated 0 – 10V input control.
- DC-DC converter with
synchronous rectification for industrial applications
The L6984 is a DC-DC buck converter with synchronous rectification that delivers up to 400 mA with an input voltage that ranges from 4.5 to 36 V. Its Low Consumption Mode, specifically designed for light load conditions, makes it ideal for applications with long stand-by periods while the Low Noise Mode, that reduces noise and makes easier to meet EMI constrains, will help in particularly noise sensitive applications like industrial sensors networks.
The L6984 comes in an extremely compact DFN 3X3 package.
- Open-source driver
for STC3115 gas gauge IC
The STSW-BAT001 open-source driver is a ready-to-use, configurable software which allows the STC3115 gas gauge IC to be rapidly integrated to the final system software and consequently obtain the best results from the OptimGauge™ algorithm.The STC3115 open-source driver comes with a full API which uses simple input information to initialize and control the STC3115 registers and RAM as well as return its battery status information to the system
January 2015
Microcontroller news from
STMicroelectronics
UP- New STM32F0 MCU boosts integration for
better user experience
The STM32F091 comes with up to eight USARTs in various 48- to 100-pin packages, including low-thickness WLCSP and BGA variants.
Its 256 Kbytes of on-chip Flash memory and 32 Kbytes of SRAM allow Java stack implementation, and the CAN 2.0a/b interface brings further capability for industrial or in-car audio applications.
Benefiting from all the other integrated features in the STM32F0 series, the STM32F091 can host applications that deliver user experiences normally associated with larger or more expensive devices.
The NUCLEO-F091RC development board lets you tap into a rich ecosystem to fast track application development.
New STM32F audio
processing software library released
Audio features on STM32F4 devices target a large range of audio accessories through a comprehensive set of high-quality post-processing algorithms, all based on ST expertize: sample rate converter, smart volume control (increase volume with no saturation), custom filters such as medium-high/loudness, bass manager (emulate 2.1 with 2.0 speaker system), multi-band graphics equalizer, stereo widening, and dialog clarity enhancer.
By releasing the STM32-AUDIO100A software library, ST enhances the STM32F4 MCU's processing capabilities and ensures that the users' audio experience is even more appealing.
Maximizing power efficiency
using new Batch Acquisition Mode
The 32F411EDISCOVERY discovery kit allows beginners and advanced users to quickly get started developing with the STM32F411 MCU featuring a new Batch Acquisition Mode and ST's Dynamic Efficiency™ technology.
It includes motion sensors (accelerometer, gyroscope, magnetometer), MEMS digital microphone, class D speaker driver, LEDs, push buttons, USB OTG, I/O prototyping extension and ST-LINK/V2 debug interface to help developers to quickly evaluate the STM32F411 power efficiency and Batch Acquisition Mode in general-purpose applications or specific ones such as sensor hubs or for voice recognition.
- STM32 F0 Value line
now offers USB and up to 256 Kbytes of Flash
The STM32F0x0 value line is the economic quintessence of entry-level 32-bit Cortex®-M0 MCUs offering 38 DMIPS at 48 MHz.
It is highly competitive in traditional 8-bit and 16-bit markets and eliminates the need to manage different architectures and the associated development overhead.
The line is now extended with a Flash memory granularity from 16 up to 256 Kbytes and with up to 32 Kbytes of SRAM.
Four devices now features the USB interface in various packages such as TSSOP20 or LQFP48/64.
To ease development, a Nucleo board (NUCLEO-F070RB) is available for less than $11.
January 2015 - Motor Control news from STMicroelectronics
- Field-Oriented Control (FOC) made easy and
affordable !
The STEVAL-IHM033V1 is a control stage demonstration board based on the STM32F100CB microcontroller.
Designed to be an evaluation environment for your motor control solutions, the STEVAL-IHM033V1 fully supports ST’s Software Development Kit (STSW-STM32100) for FOC on Permanent Magnet Synchronous Motors (PMSM).
The dedicated on-board MC connector lets you complete your system by selecting one of ST’s power boards matching various motor specifications (e.g. STEVAL-IHM035V2).
In addition, the board supports sinusoidal and trapezoidal control and features an insulated USART for communication.
- Increase the
efficiency of your motor control designs with ST’s new 1200 V IGBT M
series
A highly optimized conduction and switching performance makes ST’s M series of 1200 V IGBTs ideal for highly-efficient motor control designs.
Improved reliability and ruggedness are ensured thanks to a wide safe operating area (SOA), a minimum short-circuit withstand time of 10 µs at 150 °C, and an extended maximum operating junction temperature of 175 °C.
- IGBT/MOSFET drivers
with built-in isolation simplify industrial power conversion designs
The STGAP1S, an advanced galvanically isolated single-channel gate driver, provides sophisticated protection functions such as Miller clamp, desaturation detection, overcurrent detection, 2-level turn-off, VCE overvoltage protection, and both under- and over-voltage lockout (UVLO and OVLO) circuits.
These features combined with its 1500V rated isolation and high noise immunity make the STGAP1S a compact and powerful solution that enables designers to match the IGBT and MOSFET driving stage to both power switches and system requirements in demanding industrial motor drives.
- ePresentation
Spin your motor application with new hands-on presentation
ST recently released the v4.0 of the STM32 PMSM FOC SDK.
This new version of the user interface and firmware library brings new features including a new motor control library architecture for easy and quick accessibility, a new sensorless algorithm for very low speed and fast acceleration (air con, fridge) and increased efficiency for low- or zero-speed, full torque applications (washing machines, factory automation).
The new hands-on presentation covers the motor control ecosystem and helps each user, step by step, make the right selection of hardware boards and install tools, and then configure the software library and spin his PMSM motor.
January 2015 -
News and Updates from
STMicroelectronics
- New 650 V MDmesh M2
MOSFETs boost efficiency and robustness
The MDmesh M2 series of super-junction MOSFETs has been extended with the introduction of 650 V devices for more robust and reliable applications.
Combining a low on-state resistance (down to 0.36 Ω in the TO-220 package) with low gate charge and input/output capacitances, they allow faster and more efficient switching in adapters, solar micro-inverters and lighting applications.
- Super-slim
AEC-Q101-qualified ultrafast rectifiers for automotive and outdoor
electronics
Housed in the 1 mm thick SMBFlat package, ST’s automotive-qualified high-voltage ultrafast rectifiers are suited for miniature electronic control modules, power converters, and motor drives, in automotive applications and, thanks to a -40 °C +175 °C temperature range, also harsh-environment applications, like base stations and outdoor lighting.
Footprint compatible with, yet 60% thinner than the standard SMB package with current-rated from 1 A to 3 A, and a VRRM from 600 V to 1200 V, this new 10-rectifier range includes L devices optimized for low forward voltage (VF), and R devices optimized for reverse-recovery time (trr).
- Never lose track with ST’s smart real-time
vehicle positioning, navigation and tracking system
The STEVAL-IEG001V2 is a smart vehicle tracking system featuring a GPS module based on TESEO II for positioning, GSM/GPRS for location update and MEMS as anti-theft feature and vehicle crash detection (a log is stored in the microSD card and sent via SMS for black-box functionality).
Installed in the vehicle, the system consists of a unit built around an STM32 microcontroller and a remote web server application where vehicle status and movements are shown on a map.
Nowadays, the tracking system is a key component of vehicle telematics, both in public transportation units, fleets and individual cars.
- Dual-line Transil for
automotive CAN bus keeps clamping voltage below 35V
The ESDCAN01-2BLY is the second version of ST’s ESD protection diode designed for circuit protection of automotive controller area network (CAN) bus lines.
It provides ESD circuit protection up to 30 kV (ISO 10605) and overvoltage protection against other automotive electrical surges such as ISO 7637-3 pulse 3a/3b.
With a rated stand-off voltage at 24 V, it maintains the maximum clamping voltage below 35 V when subjected to ISO 7637-3 pulse 3a/3b bursts. Housed in the SOT23 package, it features a 230-watt peak pulse power at 120 °C for protection in harsh environments.
