The X-NUCLEO board are
shields for NUCLEO-Board.
The official page of X-NUCLEO is here.
The expansion boards (X-NUCLEO) are equipped with standardized interconnections, such as
an Arduino Uno R3 connector, or
a Morpho connector for a higher level of connectivity

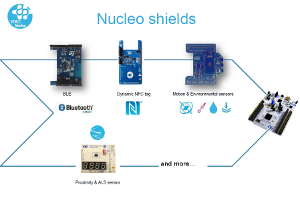

STM32 Nucleo eco system growth
x
X-NUCLEO-CCA02M1 Digital MEMS microphones expansion board based on MP34DT01-M for STM32 Nucleo
-
X-NUCLEO-IKS01A1 MEMS and Environmental sensor expansion board for STM32 Nucleo, it's include:
WiFi
X-NUCLEO-IDW01M1 - WiFi expansion board based on SWPF01SA module for STM32 Nucleo
The X-NUCLEO-IDW01M1 is a WiFi evaluation board based on the SPWF01SA module, which expands the STM32 Nucleo boards.
The CE, IC and FCC certified SPWF01SA module has an embedded STM32 MCU, a low-power WiFi b/g/n SoC with integrated power amplifier and power management and an SMD antenna.
The SPWF01SA module is also equipped with 1MByte of external FLASH for firmware update over-the-air (FOTA).
The firmware features a complete software IP stack to open up to 8 TCP/UDP sockets, as well as dynamic web pages with SSI to interact with the module and a REST API (get & post) for conveniently transferring files to/from servers in the cloud.
The module can simultaneously behave as a socket server and socket client.
The firmware supports secure sockets with TLS/SSL encryption, ensuring secure end-to-end communications with the cloud, with or without authentication.
The module operates as a client STA, IBSS, or miniAP (with up to 5 client STAs).
The X-NUCLEO-IDW01M1 interfaces with the MCU on the STM32 Nucleo board via the UART serial port; the user can easily access the stack functions using the AT command. X-NUCLEO-IDW01M1 is compatible with both the ST morpho and Arduino UNO R3 connector layout.
This package contains software and sample applications that allow the user to:
-
X-NUCLEO-IDB04A1 Bluetooth low energy expansion board based on BlueNRG for STM32 Nucleo
UP
-
X-NUCLEO-IDB05A1 Bluetooth Low Energy expansion board based on SPBTLE-RF module for STM32 Nucleo.
The X-NUCLEO-IDB05A1 is a Bluetooth Low Energy evaluation board based on the SPBTLE-RF BlueNRG-MS RF module to allow expansion of the STM32 Nucleo boards. The SPBTLE-RF module is FCC (FCC ID: S9NSPBTLERF) and IC certified (IC: 8976C-SPBTLERF).
The X-NUCLEO-IDB05A1 is compatible with the ST Morpho and Arduino UNO R3 connector layout (the user can mount the ST Morpho connectors, if required). The X-NUCLEO-IDB05A1 interfaces with the STM32 microcontroller via the SPI pin, and the user can change the default SPI clock, the SPI chip select and SPI IRQ by changing one resistor on the evaluation board.
x
X-NUCLEO-IDS01A4 Sub-1 GHz RF expansion board based on the SPSGRF-868 module
A short description is here.
The SW for CUBE is: X-CUBE-SUBG1
Quick start guide - How to use the P2P example (present into the X-CUBE-SUBG1) on the X-NUCLEO-IDS01A4 ( SPSGRF-868 or SPIRIT1) and NUCLEO-L053R8
It is also available the: X-NUCLEO-IDS01A5
Sub-1 GHz RF expansion board based on the SPSGRF-915 module for STM32 Nucleo
-
X-NUCLEO-IHM09M1 - Motor control connector expansion board for STM32 Nucleo
The X-NUCLEO-IHM09M1 is a motor control connector expansion board for STM32 Nucleo.
It provides an easy way to evaluate motor control solutions for three-phase motors by adapting the STM32 Nucleo board with an external ST motor control power board, thanks to ST morpho and motor control connector.
The 34-pin motor control connector is compatible with all major ST motor control power boards, requiring an external digital section (MCU) to drive a three-phase motor (FOC).
The DAC connector supports user code development and testing with easy access to the MCU peripherals.
A LED is available for fault condition signaling or status indication.
Potentiometer available (i.e. for speed reference)
-

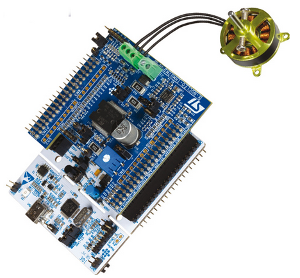

P-NUCLEO-IHM001, Motor Control Nucleo Pack with NUCLEO-F302R8 and X-NUCLEO-IHM07M1. The official link is here.
The STM32 NUCLEO Pack (P-NUCLEO-IHM001) is a motor control kit based on X-NUCLEO-IHM07M1 and NUCLEO-F302R8 boards.
This platform provides a motor control solution for low voltage three-phase DC brushless motor. It is based on L6230 driver (belonging to STSPIN family) and on STM32F302R8 MCU.
The L6230 driver is a DMOS fully integrated device for three-phase brushless PMSM motor, with integrated overcurrent and thermal protection.
The STM32F302R8 is a 32-bit microcontroller based on a high-performance ARM®Cortex® -M4 32-bit RISC core, with floating point unit (FPU), operating at a frequency of up to 72 MHz and embedding an advanced analog peripheral set.
The X-NUCLEO-IHM07M1 board is fully configurable and ready to support different closed loop control, FOC or 6-step, based on sensorless or sensor mode, and it is compatible with three shunts or single shunt for current sense measuring.
The NUCLEO-F302R8 board provides an affordable and flexible way for users to try out new concepts and build prototypes with STM32 MCU.
An external power supply (8 V min; 12 V max) is required to power the kit.
It does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer.
-

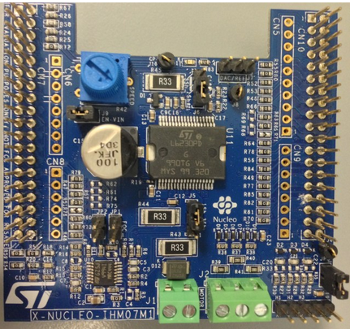

X-NUCLEO-IHM07M1, Three-phase brushless DC motor driver expansion board based on L6230 for STM32 Nucleo. The official link is here.
The X-NUCLEO-IHM07M1 is a three-phase brushless DC motor driver expansion board based on the L6230 for NUCLEO-F302R8.
It provides an affordable and easy-to-use solution for driving three-phase brushless DC motor in your STM32 Nucleo project.
The X-NUCLEO-IHM07M1 is compatible with the ST Morpho connector and supports the addition of other boards which can be stacked with onto a single STM32 Nucleo board.
The user can also mount the Arduino UNO R3 connector.
The driver used on this STM32 Nucleo board is the L6230, a DMOS fully integrated driver for three-phase brushless DC motors assembled in a PowerSO-36 package (L6230PD), with overcurrent and thermal protection.
The L6230 driver is optimized for six-step and FOC algorithms thanks to independent current sensing.
-
X-NUCLEO-IHM05A1 is a bipolar stepper motor driver expansion board based on the fully-integrated L6208 DMOS driver that can handle up to 50 V and 2.8 ARMS per motor phase.
-
X-NUCLEO-IHM01A1 Stepper motor driver expansion board based on easySPIN™ L6474 for STM32 Nucleo
-
X-NUCLEO-IHM02A1 - Two axis stepper motor driver expansion board based on the L6470 for STM32 Nucleo
The X-NUCLEO-IHM02A1 is a two axis stepper motor driver expansion board based on the L6470. It provides an affordable and easy-to-use solution for low voltage motor control driving for stepper motors in your STM32 Nucleo project.
The expansion board includes two L6470s, a fully-integrated micro stepping motor driver used to control stepper motors by means of high-end motion control commands received through SPI.
It is capable of driving one or two stepper motors when plugged into an STM32 Nucleo board.
This board is equipped with Arduino UNO R3 connectors and the layout is also compatible with ST morpho connectors.
One or more of these expansion boards can be plugged into an STM32 Nucleo board to control one or more stepper motors.
Each SPI peripheral of each L6470 is connected in a daisy chain configuration.
-
X-NUCLEO-NFC03A1 - NFC card reader expansion board based on CR95HF for STM32 Nucleo
Features
• NFC (Near Field Communication) card reader evaluation board based on CR95HF, designed for expansion of STM32 Nucleo boards
• Reader/Writer modes supported
• 47 mm x 34 mm, four turns, 13.56 MHz inductive antenna etched on PCB, and associated tuning circuit
• RF communication
– ISO/IEC 14443 (A and B)
– ISO/IEC 15693
– ISO/IEC 18092
– MIFARE® Classic compatible
• Equipped with Arduino™ UNO R3 connector
• Four general purpose LEDs
• Scalable solution, capable of cascading multiple boards for larger systems
• Free comprehensive development firmware library and examples for CR95HF, compatible with STM32Cube firmware
-
X-NUCLEO-NFC02A1 Dynamic NFC tag expansion board based on M24LR for STM32 Nucleo
-
X-NUCLEO-NFC01A1 Dynamic NFC tag expansion board based on M24SR for STM32 Nucleo
-
P-NUCLEO-53L0A1 - Includes VL53L0X Expansion board and NUCLEO-F401RE.
VL53L0X is Time-of-Flight (ToF) ranging sensor. Measures absolute range up to 2m
The P-NUCLEO-53L0A1 is an evaluation pack that provides an introduction to the ranging and gesture detection features of the VL53L0X sensor, combined with the powerful STM32F401RE (NUCLEO-F401RE) microcontroller.
The VL53L0X is the latest product based on ST’s patented FlightSenseTMtechnology.
This is a ground-breaking technology allowing absolute distance to be measured independent of target reflectance.
Instead of estimating the distance by measuring the amount of light reflected back from the object (which is significantly influenced by color and surface), the VL53L0X precisely measures the time the light takes to travel to the nearest object and reflect back to the sensor (Time-of-Flight).
The STM32 Nucleo board, NUCLEO-F401RE, provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.
-
If you need only the evaboard for VL53L0X the part number is: X-NUCLEO-53L0A1 see below.
-

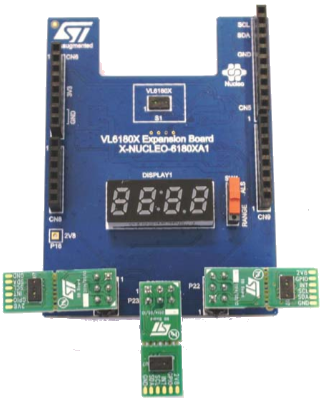

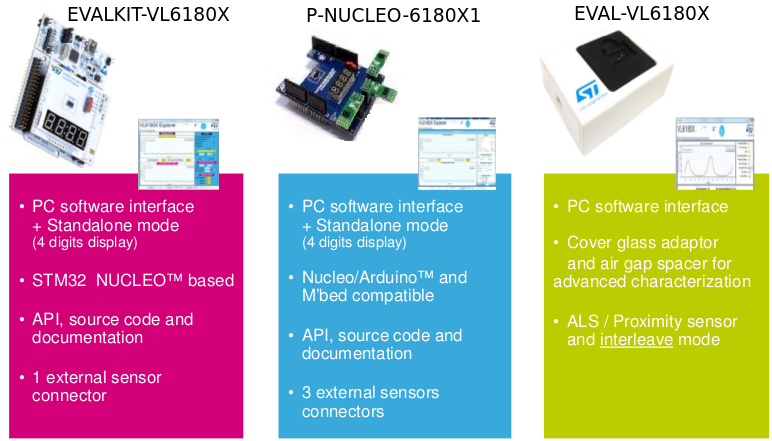

EVALKIT-VL6180X Proximity sensor expansion board based on VL6180X for STM32 Nucleo.
EVALKIT-VL6180X contain a NUCLEO-F401RE + VL6180X expansion board, see below.
UP
UP
-
X-NUCLEO-IKA01A1 - Multifunctional expansion board based on operational amplifiers for STM32 Nucleo
The X-NUCLEO-IKA01A1 is a multifunctional expansion board based on STMicroelectronics operational amplifiers.
It provides an affordable and easy-to-use solution for various use cases with your STM32 Nucleo board.
The X-NUCLEO-IKA01A1 is compatible with the Arduino™ UNO R3 connector, and supports the addition of other boards that can be stacked for enhanced applications with an STM32 Nucleo board.
It can be used as an analog front-end by conditioning signals as actuator to drive LEDs or coils, or in a comparator architecture.
Thanks to its current-sensing configuration, it allows current measurement of any device that has a Micro-USB port.
A highly accurate TSZ124 Micropower operational amplifier is used for this configuration as well as for that of the instrumentation amplifier.
The expansion board also contains a TSU104 Nanopower op-amp and a TSV734 Micropower op-amp for mobile applications.
UP
-
X-NUCLEO-PLC01A1 - Industrial input/output expansion board based on VNI8200XP and CLT01-38SQ7 for STM32 Nucleo
It is compatible with the Arduino UNO R3 connector layout and is designed around VNI8200XP (solid state relay) and CLT01-38SQ7 (octal digital termination array).
The X-NUCLEO-PLC01A1 interfaces with the STM32 MCU via the SPI peripheral.
Moreover, it is equipped with a set of diagnostic and activity LEDs to facilitate application debugging.
It can accept other STM32 plug-on expansion boards to further extend the STM32 Nucleo board functionality.
The X-NUCLEO-PLC01A1 allows the rapid evaluation of the ICs on board performing a basic set of PLC operations in conjunction with the X-CUBE-PLC1 software package. X-NUCLEO-PLC01A1 is not intended to evaluate the single devices at their full specifications. VNI8200XP includes advanced protection and fault detection features.
CLT01-38SQ7 provides protection and isolation in industrial operating conditions as well as an 'energy-less' status indication for each of the eight input channels, featuring minimal power consumption; it is designed for situations that are required to pass the IEC61000-4-2 8 kV and 15 kV test standards.
Both the CLT01-38SQ7 and the VNI8200XP are designed to meet the most common industrial requirements (i.e. IEC61000-4-2, IEC61000-4-4, IEC61000-4-5 or IEC61131-2); to eveluate them further, refer to the single-product evaluation boards, available at www.st.com.
NUCLEO Page
INDEX
- Introduction
- MEMS
- X-NUCLEO-CCA02M1 Digital MEMS microphones expansion board based on MP34DT01-M for STM32 Nucleo
- X-NUCLEO-IKS01A1 MEMS and Environmental sensor
expansion board for STM32 Nucleo. - WireLess
- X-NUCLEO-IDW01M1 - WiFi expansion board based on SWPF01SA module for STM32 Nucleo
- X-NUCLEO-IDB04A1 Bluetooth low energy expansion board based on BlueNRG.
- X-NUCLEO-IDB05A1 Bluetooth Low Energy expansion board based on SPBTLE-RF module for STM32 Nucleo
- X-NUCLEO-IDS01A4 Sub-1 GHz RF expansion board based on the SPSGRF-868 MHz module and X-NUCLEO-IDS01A5
- X-NUCLEO-IDS01A4 Sub-1 GHz RF expansion board based on the SPSGRF-915 MHz module
- Contiki 6LoWPAN Quick Guide
Contiki on STM32 Nucleo plugged with Sub-1 GHz RF expansion board (X-NUCLEO-IDS01A4 - 868MHz, X-NUCLEO-IDS01A5 - 915MHz)
- Motor Control
- X-NUCLEO-IHM09M1 - Motor control connector expansion board for STM32 Nucleo
- P-NUCLEO-IHM001, Motor Control Nucleo Pack (for FOC) with NUCLEO-F302R8 and X-NUCLEO-IHM07M1
- X-NUCLEO-IHM07M1, Three-phase brushless DC motor driver expansion board based on L6230 for STM32 Nucleo
- X-NUCLEO-IHM01A1 Stepper
motor driver expansion board based on easySPIN™ L6474 for
STM32 Nucleo
- X-NUCLEO-IHM02A1 - Two axis stepper motor driver expansion board based on the L6470 for STM32 Nucleo
- X-NUCLEO-IHM03A1 - High power stepper motor driver expansion board based on powerSTEP01 for STM32 Nucleo
- X-NUCLEO-IHM04A1 - Dual brush DC motor driver expansion board based on L6206 for STM32 Nucleo
- X-NUCLEO-IHM05A1 is a bipolar stepper motor driver expansion board based on the fully-integrated L6208 DMOS driver that can handle up to 50 V and 2.8 ARMS per motor phase.
- X-NUCLEO-IHM08M1 is a three-phase brushless DC motor driver expansion board based on the STL220N6F7 STripFET™ F7 Power MOSFET for STM32 Nucleo.
- LED Driver
- X-NUCLEO-LED61A1- DC-DC LED driver expansion board based on LED6001 for STM32 Nucleo
- NFC
- X-NUCLEO-NFC03A1 NFC card reader expansion board based on CR95HF for STM32 Nucleo
- X-NUCLEO-NFC01A1 Dynamic
NFC tag expansion board based on M24SR for STM32 Nucleo
- X-NUCLEO-NFC02A1 Dynamic NFC tag expansion board based on M24LR for STM32 Nucleo
- Proximity
- P-NUCLEO-53L0A1 - Includes VL53L0X Expansion board and NUCLEO-F401RE.
VL53L0X is Time-of-Flight (ToF) ranging sensor. Measures absolute range up to 2m.
- X-NUCLEO-53L0A1 - Ranging sensor expansion board based on VL53L0X for STM32 Nucleo
VL53L0X is Time-of-Flight (ToF) ranging sensor. Measures absolute range up to 2m.
- EVALKIT-VL6180X Proximity sensor expansion board
based on VL6180X
for STM32 Nucleo.
VL6180X-SATEL - Satellite: mini-PCB with VL6180X for easy integration (compatible with VL6180X expansion boards)
- P-NUCLEO-6180X1 - VL6180X Nucleo pack - Includes VL6180X Expansion board and STM32F401RE Nucleo
- P-NUCLEO-6180X2 - VL6180X Nucleo pack - NEW - Includes VL6180X Expansion board and STM32L053R8 Nucleo
- OpAmp
- X-NUCLEO-IKA01A1 - Multifunctional expansion board based on operational amplifiers for STM32 Nucleo
- Audio
- X-NUCLEO-CCA01M1 - Sound terminal expansion board based on STA350BW for STM32 Nucleo
- Expansion Board
- X-NUCLEO-PLC01A1 - Industrial input/output expansion board based on VNI8200XP and CLT01-38SQ7 for STM32 Nucleo
The official page of X-NUCLEO is here.
The expansion boards (X-NUCLEO) are equipped with standardized interconnections, such as
an Arduino Uno R3 connector, or
a Morpho connector for a higher level of connectivity
STM32 Nucleo eco system growth
- Application library compatible with STM32 Cube software
- Software examples
work with several IDEs (GCC, MBED, KEIL, IAR)
- Shared section «STM32 Nucleo expansion boards» is active on ST website
x

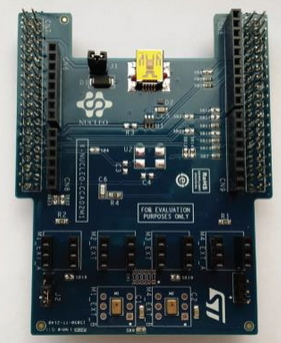

X-NUCLEO-CCA02M1 Digital MEMS microphones expansion board based on MP34DT01-M for STM32 Nucleo
Key Features
2x MP34DT01-M Digital MEMS microphones on board
6 slots to plug digital microphone coupon boards such as STEVAL-MKI129Vx and
STEVAL-MKI155Vx
Up to 4 microphone synchronized acquisition and streaming
Free comprehensive development firmware library and audio capture and USB streaming
example application compatible with STM32Cube firmware
Compatible with STM32 Nucleo boards
Equipped with Morpho connector (upward and downward)
Equipped with Arduino UNO R3 connector (upward) to allow multiple board application
RoHS compliant
2x MP34DT01-M Digital MEMS microphones on board
6 slots to plug digital microphone coupon boards such as STEVAL-MKI129Vx and
STEVAL-MKI155Vx
Up to 4 microphone synchronized acquisition and streaming
Free comprehensive development firmware library and audio capture and USB streaming
example application compatible with STM32Cube firmware
Compatible with STM32 Nucleo boards
Equipped with Morpho connector (upward and downward)
Equipped with Arduino UNO R3 connector (upward) to allow multiple board application
RoHS compliant
Related Tools and Software
| Part Number | Description |
|---|---|
| OSXBLUEVOICE | Voice-over-Bluetooth Low Energy vendor-specific profile library for STM32 and BlueNRG |
| BLUEVOICELINK1 | Bluetooth Low Energy and microphones software expansion for STM32Cube |
| X-CUBE-MEMSMIC1 | Digital MEMS microphones acquisition and processing software expansion for STM32Cube |
-
X-NUCLEO-IKS01A1 MEMS and Environmental sensor expansion board for STM32 Nucleo, it's include:
LSM6DS0: MEMS 3D accelerometer (±2/±4/±8 g) + 3D gyroscope (±245/±500/±2000 dps)
LIS3MDL: MEMS 3D magnetometer (±4/ ±8/ ±12/ 16 gauss)
LPS25H: MEMS pressure sensor, 260-1260 hPa absolute digital output barometer
HTS221: capacitive digital relative humidity and temperature
DIL 24-pin socket available for additional MEMS adapters and other sensors (UV index)
Tutorial
Ready for mBed
LIS3MDL: MEMS 3D magnetometer (±4/ ±8/ ±12/ 16 gauss)
LPS25H: MEMS pressure sensor, 260-1260 hPa absolute digital output barometer
HTS221: capacitive digital relative humidity and temperature
DIL 24-pin socket available for additional MEMS adapters and other sensors (UV index)
Tutorial
Ready for mBed
WiFi
X-NUCLEO-IDW01M1 - WiFi expansion board based on SWPF01SA module for STM32 Nucleo
The X-NUCLEO-IDW01M1 is a WiFi evaluation board based on the SPWF01SA module, which expands the STM32 Nucleo boards.
The CE, IC and FCC certified SPWF01SA module has an embedded STM32 MCU, a low-power WiFi b/g/n SoC with integrated power amplifier and power management and an SMD antenna.
The SPWF01SA module is also equipped with 1MByte of external FLASH for firmware update over-the-air (FOTA).
The firmware features a complete software IP stack to open up to 8 TCP/UDP sockets, as well as dynamic web pages with SSI to interact with the module and a REST API (get & post) for conveniently transferring files to/from servers in the cloud.
The module can simultaneously behave as a socket server and socket client.
The firmware supports secure sockets with TLS/SSL encryption, ensuring secure end-to-end communications with the cloud, with or without authentication.
The module operates as a client STA, IBSS, or miniAP (with up to 5 client STAs).
The X-NUCLEO-IDW01M1 interfaces with the MCU on the STM32 Nucleo board via the UART serial port; the user can easily access the stack functions using the AT command. X-NUCLEO-IDW01M1 is compatible with both the ST morpho and Arduino UNO R3 connector layout.
This package contains software and sample applications that allow the user to:
- configure the SPWF01SA to connect to Access Points
- configure the SPWF01SA in STA, MiniAP and IBSS modes of operation
- scan available networks and choose APs to connect to
- use TCP/UDP connections to open, close and read/write to sockets/server sockets
- perform REST full actions like HTTP-GET/POST
- perform actions on files on a webserver
-
X-NUCLEO-IDB04A1 Bluetooth low energy expansion board based on BlueNRG for STM32 Nucleo
A short description is here.
Ready for mBed.
Library & Tutorial
Ready for mBed.
Library & Tutorial
- BlueNRG Guideline from Evaluation to Production V3.0
- BLUEMICROSYSTEM1 - Bluetooth low energy and sensors software expansion for STM32Cube
- OSXSmartConnPS - Bluetooth low energy profiles for the X-CUBE-BLE1 expansion for STM32Cube
- X-CUBE-BLE1 - Bluetooth Low Energy software expansion for STM32Cube
- BlueNRG + NUCLEO-L053R8 + APP
- See the BlueNRG + CUBE + iPhone video (sorry for the poor quality of the video)
- Quick Start Guide - Bluetooth Low Energy expansion board based on the BlueNRG for STM32 NUCLEO (X-NUCLEO-IDB04A1) (See from pg.15)
- BALF-NRG-01D3 - 50 Ω nominal input / conjugate match balun to BlueNRG transceiver, with integrated harmonic filter
UP
-
X-NUCLEO-IDB05A1 Bluetooth Low Energy expansion board based on SPBTLE-RF module for STM32 Nucleo.
The X-NUCLEO-IDB05A1 is a Bluetooth Low Energy evaluation board based on the SPBTLE-RF BlueNRG-MS RF module to allow expansion of the STM32 Nucleo boards. The SPBTLE-RF module is FCC (FCC ID: S9NSPBTLERF) and IC certified (IC: 8976C-SPBTLERF).
The X-NUCLEO-IDB05A1 is compatible with the ST Morpho and Arduino UNO R3 connector layout (the user can mount the ST Morpho connectors, if required). The X-NUCLEO-IDB05A1 interfaces with the STM32 microcontroller via the SPI pin, and the user can change the default SPI clock, the SPI chip select and SPI IRQ by changing one resistor on the evaluation board.
x
X-NUCLEO-IDS01A4 Sub-1 GHz RF expansion board based on the SPSGRF-868 module
A short description is here.
The SW for CUBE is: X-CUBE-SUBG1
X-CUBE-SUBG1 is an expansion software package for STM32Cube.
The software runs on the STM32 and includes drivers that recognize the Sub-1 GHz RF communication for SPIRIT1 modules SPSGRF (SPSGRF-868 or SPSGRF-915). The expansion is built on STM32Cube software technology to ease portability across different STM32 microcontrollers.
The software comes with examples of implementation of P2P and WM-Bus communication protocols, running on a SPIRIT1 module SPSGRF expansion board (X-NUCLEO-IDS01A4 or X-NUCLEO-IDS01A5) when connected to a NUCLEO-F401RE or NUCLEO-L053R8.
WM-Bus communication protocol is available for X-NUCLEO-IDS01A4 only.
The software runs on the STM32 and includes drivers that recognize the Sub-1 GHz RF communication for SPIRIT1 modules SPSGRF (SPSGRF-868 or SPSGRF-915). The expansion is built on STM32Cube software technology to ease portability across different STM32 microcontrollers.
The software comes with examples of implementation of P2P and WM-Bus communication protocols, running on a SPIRIT1 module SPSGRF expansion board (X-NUCLEO-IDS01A4 or X-NUCLEO-IDS01A5) when connected to a NUCLEO-F401RE or NUCLEO-L053R8.
WM-Bus communication protocol is available for X-NUCLEO-IDS01A4 only.
Quick start guide - How to use the P2P example (present into the X-CUBE-SUBG1) on the X-NUCLEO-IDS01A4 ( SPSGRF-868 or SPIRIT1) and NUCLEO-L053R8
It is also available the: X-NUCLEO-IDS01A5
Sub-1 GHz RF expansion board based on the SPSGRF-915 module for STM32 Nucleo
- Contiki 6LoWPAN Quick Guide
Contiki on STM32 Nucleo plugged with Sub-1 GHz RF expansion board (X-NUCLEO-IDS01A4 - 868MHz, X-NUCLEO-IDS01A5 - 915MHz)
-
X-NUCLEO-IHM09M1 - Motor control connector expansion board for STM32 Nucleo
The X-NUCLEO-IHM09M1 is a motor control connector expansion board for STM32 Nucleo.
It provides an easy way to evaluate motor control solutions for three-phase motors by adapting the STM32 Nucleo board with an external ST motor control power board, thanks to ST morpho and motor control connector.
The 34-pin motor control connector is compatible with all major ST motor control power boards, requiring an external digital section (MCU) to drive a three-phase motor (FOC).
The DAC connector supports user code development and testing with easy access to the MCU peripherals.
A LED is available for fault condition signaling or status indication.
Potentiometer available (i.e. for speed reference)
-
P-NUCLEO-IHM001, Motor Control Nucleo Pack with NUCLEO-F302R8 and X-NUCLEO-IHM07M1. The official link is here.
The STM32 NUCLEO Pack (P-NUCLEO-IHM001) is a motor control kit based on X-NUCLEO-IHM07M1 and NUCLEO-F302R8 boards.
This platform provides a motor control solution for low voltage three-phase DC brushless motor. It is based on L6230 driver (belonging to STSPIN family) and on STM32F302R8 MCU.
The L6230 driver is a DMOS fully integrated device for three-phase brushless PMSM motor, with integrated overcurrent and thermal protection.
The STM32F302R8 is a 32-bit microcontroller based on a high-performance ARM®Cortex® -M4 32-bit RISC core, with floating point unit (FPU), operating at a frequency of up to 72 MHz and embedding an advanced analog peripheral set.
The X-NUCLEO-IHM07M1 board is fully configurable and ready to support different closed loop control, FOC or 6-step, based on sensorless or sensor mode, and it is compatible with three shunts or single shunt for current sense measuring.
The NUCLEO-F302R8 board provides an affordable and flexible way for users to try out new concepts and build prototypes with STM32 MCU.
An external power supply (8 V min; 12 V max) is required to power the kit.
It does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer.
UP
-
X-NUCLEO-IHM08M1 is a three-phase brushless DC motor driver expansion board based on the STL220N6F7 STripFET™ F7 Power MOSFET for STM32 Nucleo.
Key Features
UPX-NUCLEO-IHM08M1 is a three-phase brushless DC motor driver expansion board based on the STL220N6F7 STripFET™ F7 Power MOSFET for STM32 Nucleo.
Key Features
- 3-phase driver board for BLDC/PMSM motors
- Nominal operating voltage range from 10 V to 48 V DC
- 15 ARMS output current
- Operating frequency selectable by firmware
- Overcurrent detection and protection (30 Apeak)
- Thermal monitoring and overheating protection
- Compatible with STM32 Nucleo boards
- Equipped with ST morpho connectors
- 3-Shunt and 1-Shunt configurable jumpers for motor current sensing
- Hall/Encoder motor sensor connector and circuit
- Debug connector for DAC, GPIOs, etc.
- Potentiometer available for speed regulation
- User LED
- RoHS compliant
-
X-NUCLEO-IHM07M1, Three-phase brushless DC motor driver expansion board based on L6230 for STM32 Nucleo. The official link is here.
The X-NUCLEO-IHM07M1 is a three-phase brushless DC motor driver expansion board based on the L6230 for NUCLEO-F302R8.
It provides an affordable and easy-to-use solution for driving three-phase brushless DC motor in your STM32 Nucleo project.
The X-NUCLEO-IHM07M1 is compatible with the ST Morpho connector and supports the addition of other boards which can be stacked with onto a single STM32 Nucleo board.
The user can also mount the Arduino UNO R3 connector.
The driver used on this STM32 Nucleo board is the L6230, a DMOS fully integrated driver for three-phase brushless DC motors assembled in a PowerSO-36 package (L6230PD), with overcurrent and thermal protection.
The L6230 driver is optimized for six-step and FOC algorithms thanks to independent current sensing.
-
X-NUCLEO-IHM05A1 is a bipolar stepper motor driver expansion board based on the fully-integrated L6208 DMOS driver that can handle up to 50 V and 2.8 ARMS per motor phase.
-
X-NUCLEO-IHM01A1 Stepper motor driver expansion board based on easySPIN™ L6474 for STM32 Nucleo
-
X-NUCLEO-IHM02A1 - Two axis stepper motor driver expansion board based on the L6470 for STM32 Nucleo
The X-NUCLEO-IHM02A1 is a two axis stepper motor driver expansion board based on the L6470. It provides an affordable and easy-to-use solution for low voltage motor control driving for stepper motors in your STM32 Nucleo project.
The expansion board includes two L6470s, a fully-integrated micro stepping motor driver used to control stepper motors by means of high-end motion control commands received through SPI.
It is capable of driving one or two stepper motors when plugged into an STM32 Nucleo board.
This board is equipped with Arduino UNO R3 connectors and the layout is also compatible with ST morpho connectors.
One or more of these expansion boards can be plugged into an STM32 Nucleo board to control one or more stepper motors.
Each SPI peripheral of each L6470 is connected in a daisy chain configuration.
UP
-
X-NUCLEO-IHM03A1 - High power stepper motor driver expansion board based on powerSTEP01 for STM32 Nucleo
The X-NUCLEO-IHM03A1 is an high power stepper motor driver expansion board based on powerSTEP01. It provides an affordable and easy-to-use solution for driving high power bipolar stepper motors in your STM32 Nucleo project. The fully digital motion control through speed profile generation, adding positioning calculations and a complete set of protection features, offers high levels of performance and robustness. The X-NUCLEO-IHM03A1 is compatible with the Arduino UNO R3 connector, and supports the addition of other boards which can be stacked to drive up to three stepper motors with a single STM32 Nucleo board.
X-NUCLEO-IHM03A1 - High power stepper motor driver expansion board based on powerSTEP01 for STM32 Nucleo
The X-NUCLEO-IHM03A1 is an high power stepper motor driver expansion board based on powerSTEP01. It provides an affordable and easy-to-use solution for driving high power bipolar stepper motors in your STM32 Nucleo project. The fully digital motion control through speed profile generation, adding positioning calculations and a complete set of protection features, offers high levels of performance and robustness. The X-NUCLEO-IHM03A1 is compatible with the Arduino UNO R3 connector, and supports the addition of other boards which can be stacked to drive up to three stepper motors with a single STM32 Nucleo board.
UP
-
X-NUCLEO-IHM04A1 - Dual brush DC motor driver expansion board based on L6206 for STM32 Nucleo
The X-NUCLEO-IHM04A1 is a dual brush DC motor drive expansion board based on the L6206 (DMOS dual full bridge driver) to drive dual bipolar DC or quad unipolar DC motors.
It provides an affordable and easy-to-use solution for driving DC motors in your STM32 Nucleo project.
The X-NUCLEO-IHM04A1 is compatible with the Arduino UNO R3 connector, and supports the addition of other expansion boards with a single STM32 Nucleo board.
The user can also mount the ST Morpho connector.
UPX-NUCLEO-IHM04A1 - Dual brush DC motor driver expansion board based on L6206 for STM32 Nucleo
The X-NUCLEO-IHM04A1 is a dual brush DC motor drive expansion board based on the L6206 (DMOS dual full bridge driver) to drive dual bipolar DC or quad unipolar DC motors.
It provides an affordable and easy-to-use solution for driving DC motors in your STM32 Nucleo project.
The X-NUCLEO-IHM04A1 is compatible with the Arduino UNO R3 connector, and supports the addition of other expansion boards with a single STM32 Nucleo board.
The user can also mount the ST Morpho connector.
-
X-NUCLEO-LED61A1 - DC-DC LED driver expansion board based on LED6001 for STM32 Nucleo
Key Features
UPX-NUCLEO-LED61A1 - DC-DC LED driver expansion board based on LED6001 for STM32 Nucleo
Key Features
- Single channel LED Driver, 350 mA constant current
- PWM and analog brightness control with the STM32 Nucleo board
- Selectable boost or SEPIC converter topology
- Up to 92% efficiency (boost converter)
- Open LED, feedback disconnection, LED overcurrent and output-to-ground short-circuit (SEPIC only) fault detection and management
- Onboard photo-transistor for ambient light switch function (analog dimming)
- Wide DC input voltage range: 8 V – 24 V
- Compatible with Arduino™ UNO R3 connectors
- Compatible with STM32 Nucleo boards
- RoHS compliant
-
X-NUCLEO-NFC03A1 - NFC card reader expansion board based on CR95HF for STM32 Nucleo
Features
• NFC (Near Field Communication) card reader evaluation board based on CR95HF, designed for expansion of STM32 Nucleo boards
• Reader/Writer modes supported
• 47 mm x 34 mm, four turns, 13.56 MHz inductive antenna etched on PCB, and associated tuning circuit
• RF communication
– ISO/IEC 14443 (A and B)
– ISO/IEC 15693
– ISO/IEC 18092
– MIFARE® Classic compatible
• Equipped with Arduino™ UNO R3 connector
• Four general purpose LEDs
• Scalable solution, capable of cascading multiple boards for larger systems
• Free comprehensive development firmware library and examples for CR95HF, compatible with STM32Cube firmware
-
X-NUCLEO-NFC02A1 Dynamic NFC tag expansion board based on M24LR for STM32 Nucleo
-
X-NUCLEO-NFC01A1 Dynamic NFC tag expansion board based on M24SR for STM32 Nucleo
- Training RFID Castelletto 21/05/2015
- ATTENTION:
At the moment, the Training RFID Castelletto 21/05/2015
shall be issued only to SILICA/STM customers.
- Here, there is a brief description of what you will find in the: Training RFID Castelletto 21/05/2015
- The page dedicated to STM RFID is here
-
P-NUCLEO-53L0A1 - Includes VL53L0X Expansion board and NUCLEO-F401RE.
VL53L0X is Time-of-Flight (ToF) ranging sensor. Measures absolute range up to 2m
The P-NUCLEO-53L0A1 is an evaluation pack that provides an introduction to the ranging and gesture detection features of the VL53L0X sensor, combined with the powerful STM32F401RE (NUCLEO-F401RE) microcontroller.
The VL53L0X is the latest product based on ST’s patented FlightSenseTMtechnology.
This is a ground-breaking technology allowing absolute distance to be measured independent of target reflectance.
Instead of estimating the distance by measuring the amount of light reflected back from the object (which is significantly influenced by color and surface), the VL53L0X precisely measures the time the light takes to travel to the nearest object and reflect back to the sensor (Time-of-Flight).
The STM32 Nucleo board, NUCLEO-F401RE, provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.
-
If you need only the evaboard for VL53L0X the part number is: X-NUCLEO-53L0A1 see below.
-
EVALKIT-VL6180X Proximity sensor expansion board based on VL6180X for STM32 Nucleo.
EVALKIT-VL6180X contain a NUCLEO-F401RE + VL6180X expansion board, see below.
- YouTube video
- VL6180X flyer
- Quick start guide to use EVALKIT-VL6180X (explorer kit) only for SILICA customers
- Please ask me the password for open the: Quick start guide to EVALKIT-VL6180X (explorer kit)
Please specify also your CITY, COUNTRY and your contact in SILICA.
- VL6180X MKT & Technical Presentation only for SILICA customers is here.
- Please ask me the password for open the: VL6180X MKT & Technical Presentation
Please specify also your CITY, COUNTRY and your contact in SILICA.
- List of eva boards for VL6180X
- cod. EVALKIT-VL6180X
- cod. P-NUCLEO-6180X1
- cod. VL6180X-SATEL - Satellite: mini-PCB with VL6180X for easy integration with P-NUCLEO-6180X1
- cod. EVAL-VL6180
UP
-
P-NUCLEO-6180X1 - VL6180X Nucleo pack - Includes VL6180X Expansion board and STM32F401RE Nucleo
The P-NUCLEO-6180X1 is an evaluation pack that provides an introduction to the proximity, ranging and light sensing capabilities of the VL6180X sensor, combined with the powerful STM32F401RE microcontroller.
The VL6180X is the latest product based on ST’s patented FlightSenseTMtechnology. This is a ground-breaking technology allowing absolute distance to be measured independent of target reflectance. Instead of estimating the distance by measuring the amount of light reflected back from the object (which is significantly influenced by color and surface), the VL6180X precisely measures the time the light takes to travel to the nearest object and reflect back to the sensor (Time-of-Flight).
The STM32 Nucleo board, NUCLEO-F401RE, provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.
VL6180X-SATEL -
Satellite: mini-PCB with VL6180X for easy integration with P-NUCLEO-6180X1
P-NUCLEO-6180X1 - VL6180X Nucleo pack - Includes VL6180X Expansion board and STM32F401RE Nucleo
The P-NUCLEO-6180X1 is an evaluation pack that provides an introduction to the proximity, ranging and light sensing capabilities of the VL6180X sensor, combined with the powerful STM32F401RE microcontroller.
The VL6180X is the latest product based on ST’s patented FlightSenseTMtechnology. This is a ground-breaking technology allowing absolute distance to be measured independent of target reflectance. Instead of estimating the distance by measuring the amount of light reflected back from the object (which is significantly influenced by color and surface), the VL6180X precisely measures the time the light takes to travel to the nearest object and reflect back to the sensor (Time-of-Flight).
The STM32 Nucleo board, NUCLEO-F401RE, provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.
VL6180X-SATEL -
Satellite: mini-PCB with VL6180X for easy integration with P-NUCLEO-6180X1
UP
-
X-NUCLEO-IKA01A1 - Multifunctional expansion board based on operational amplifiers for STM32 Nucleo
The X-NUCLEO-IKA01A1 is a multifunctional expansion board based on STMicroelectronics operational amplifiers.
It provides an affordable and easy-to-use solution for various use cases with your STM32 Nucleo board.
The X-NUCLEO-IKA01A1 is compatible with the Arduino™ UNO R3 connector, and supports the addition of other boards that can be stacked for enhanced applications with an STM32 Nucleo board.
It can be used as an analog front-end by conditioning signals as actuator to drive LEDs or coils, or in a comparator architecture.
Thanks to its current-sensing configuration, it allows current measurement of any device that has a Micro-USB port.
A highly accurate TSZ124 Micropower operational amplifier is used for this configuration as well as for that of the instrumentation amplifier.
The expansion board also contains a TSU104 Nanopower op-amp and a TSV734 Micropower op-amp for mobile applications.
-
X-NUCLEO-CCA01M1 - Sound terminal expansion board based on STA350BW for STM32 Nucleo
Key Features
UPX-NUCLEO-CCA01M1 - Sound terminal expansion board based on STA350BW for STM32 Nucleo
Key Features
- 2 channels of ternary PWM 2 x 50W @ 25V 6 Ω
- FFX ™ 100 dB SNR and dynamic range
- I²C control with selectable device address
- Digital gain +48 dB -80 dB with 0.125 dB/step
- Two independent DRCs configurable as a dual-band anti-clipper (B2DRC) or independent
- limiters/compressors
- I²S input interface
- 3 coefficients banks for EQ preset storing with fast recall via I²C interface
- Up to 8 user-programmable biquads per channel
- Free comprehensive development firmware library and example compatible with STM32Cube firmware
- Compatible with STM32 Nucleo boards
- Equipped with ST morpho connector (upward and downward)
- Equipped with Arduino UNO R3 connector (upward) to allow multiple board connections
- RoHS compliant
-
X-NUCLEO-PLC01A1 - Industrial input/output expansion board based on VNI8200XP and CLT01-38SQ7 for STM32 Nucleo
- Quick start guide X-NUCLEO-PLC01A1 is here.
The Quick start guide X-NUCLEO-PLC01A1 is only to SILICA and STM customers.
It is compatible with the Arduino UNO R3 connector layout and is designed around VNI8200XP (solid state relay) and CLT01-38SQ7 (octal digital termination array).
The X-NUCLEO-PLC01A1 interfaces with the STM32 MCU via the SPI peripheral.
Moreover, it is equipped with a set of diagnostic and activity LEDs to facilitate application debugging.
It can accept other STM32 plug-on expansion boards to further extend the STM32 Nucleo board functionality.
The X-NUCLEO-PLC01A1 allows the rapid evaluation of the ICs on board performing a basic set of PLC operations in conjunction with the X-CUBE-PLC1 software package. X-NUCLEO-PLC01A1 is not intended to evaluate the single devices at their full specifications. VNI8200XP includes advanced protection and fault detection features.
CLT01-38SQ7 provides protection and isolation in industrial operating conditions as well as an 'energy-less' status indication for each of the eight input channels, featuring minimal power consumption; it is designed for situations that are required to pass the IEC61000-4-2 8 kV and 15 kV test standards.
Both the CLT01-38SQ7 and the VNI8200XP are designed to meet the most common industrial requirements (i.e. IEC61000-4-2, IEC61000-4-4, IEC61000-4-5 or IEC61131-2); to eveluate them further, refer to the single-product evaluation boards, available at www.st.com.
