Introduction
BT MODULE (v.3.0 and v.4.x)
The SPBTLE-RF is an easy to use Bluetooth® Smart master/slave network processor module, compliant with Bluetooth®v4.1.
The SPBTLE-RF B-SmarT module supports multiple roles simultaneously, and can act at the same time as Bluetooth Smart sensor and hub device.
The entire Bluetooth Smart stack and protocols are embedded into SPBTLE-RF B-SmarT module. The external host application processor, where the application resides, is connected to the SPBTLE-RF B-SmarT module through a standard SPI interface
The SPBTLE-RF B-SmarT module provides a complete RF platform in a tiny form factor.
Radio, antenna, high frequency and LPO oscillators are integrated to offer a certified solution to optimize the time to market of the final applications.
The SPBTLE-RF can be powered directly with a standard 3 V coin cell battery, a pair of AAA batteries or any power source from 1.7 to 3.6 V.
Bluetooth Low Energy ICs (v.4.x)

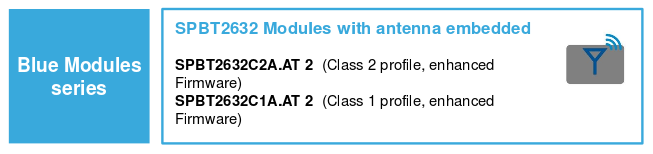

ST’s latest micro-sized Blue Module
series offers a fast, flexible and affordable Bluetooth solution on a
highly reliable platform based on the most advanced Bluetooth
technology.

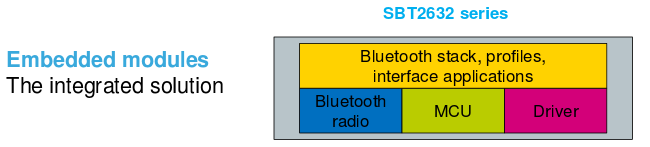

Modules, optimized in terms of performances and costs, support the latest Bluetooth Classic Bluetooth 3.0 and are compatible with previous Bluetooth 2.1+EDR.

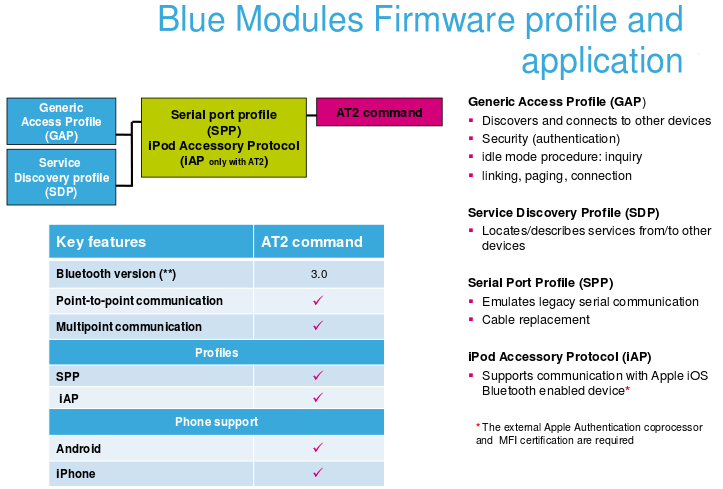

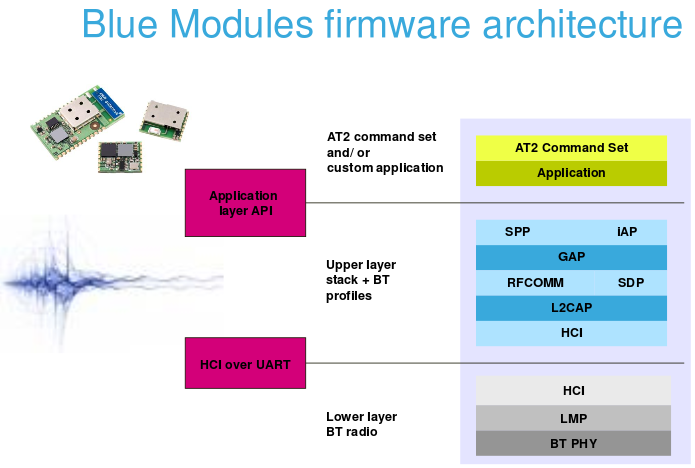

The Bluetooth stack is embedded in ST’s Blue Modules with the profiles and a user-friendly application that ensures a simple and effective way to use the modules via AT commands.
The AT command set is a powerful application embedded in the Blue Modules and implements a user-friendly interface.
The AT2 firmware version enables communication with Android, smartphones and most Bluetooth enabled devices that support the serial port profile, including the Apple iOS Bluetooth enabled devices.
The external Apple authentication coprocessor and MFI certification are required.

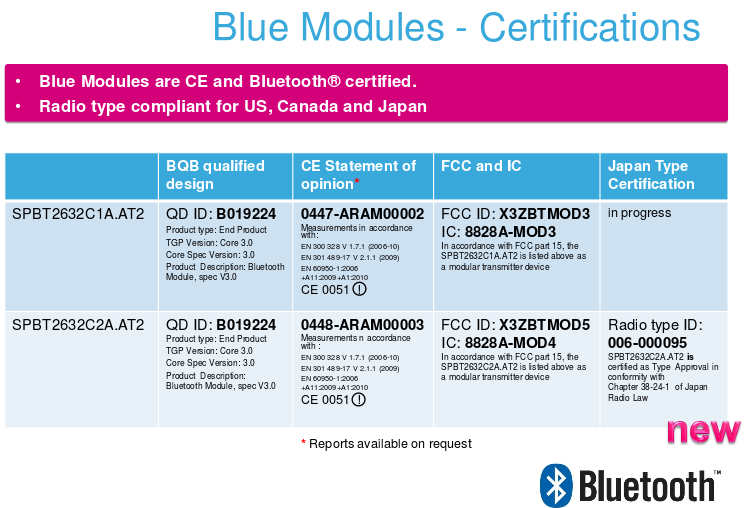

The modules are fully RF and BQE qualified and RoHs compliant.
Modules, optimized in terms of performances and costs, support the latest Bluetooth Classic Bluetooth 3.0 and are compatible with previous Bluetooth 2.1+EDR.
The Bluetooth stack is embedded in ST’s Blue Modules with the profiles and a user-friendly application that ensures a simple and effective way to use the modules via AT commands.
The AT command set is a powerful application embedded in the Blue Modules and implements a user-friendly interface.
The AT2 firmware version enables communication with Android, smartphones and most Bluetooth enabled devices that support the serial port profile, including the Apple iOS Bluetooth enabled devices.
The external Apple authentication coprocessor and MFI certification are required.
The modules are fully RF and BQE qualified and RoHs compliant.
The SPBTLE-RF is an easy to use Bluetooth® Smart master/slave network processor module, compliant with Bluetooth®v4.1.
The SPBTLE-RF B-SmarT module supports multiple roles simultaneously, and can act at the same time as Bluetooth Smart sensor and hub device.
The entire Bluetooth Smart stack and protocols are embedded into SPBTLE-RF B-SmarT module. The external host application processor, where the application resides, is connected to the SPBTLE-RF B-SmarT module through a standard SPI interface
The SPBTLE-RF B-SmarT module provides a complete RF platform in a tiny form factor.
Radio, antenna, high frequency and LPO oscillators are integrated to offer a certified solution to optimize the time to market of the final applications.
The SPBTLE-RF can be powered directly with a standard 3 V coin cell battery, a pair of AAA batteries or any power source from 1.7 to 3.6 V.
Bluetooth Low Energy ICs (v.4.x)
BlueNRG
BlueNRG-MS
Bluetooth® low energy wireless network processor supporting Bluetooth 4.0 core specification
The BlueNRG is a very low power Bluetooth low energy (BLE) single-mode network processor, compliant with Bluetooth specification v4.0. The BlueNRG can act as master or slave. The entire Bluetooth low energy stack runs on the embedded Cortex M0 core. The non-volatile Flash memory allows on-field stack upgrading. The BlueNRG allows applications to meet the tight advisable peak current requirements imposed by the use of standard coin cell batteries. The maximum peak current is only 10 mA at 1 dBm of output power. Ultra low-power sleep modes and very short transition times between operating modes allow very low average current consumption, resulting in longer battery life. The BlueNRG offers the option of interfacing with external microcontrollers using SPI transport layer.
The BlueNRG is a very low power Bluetooth low energy (BLE) single-mode network processor, compliant with Bluetooth specification v4.0. The BlueNRG can act as master or slave. The entire Bluetooth low energy stack runs on the embedded Cortex M0 core. The non-volatile Flash memory allows on-field stack upgrading. The BlueNRG allows applications to meet the tight advisable peak current requirements imposed by the use of standard coin cell batteries. The maximum peak current is only 10 mA at 1 dBm of output power. Ultra low-power sleep modes and very short transition times between operating modes allow very low average current consumption, resulting in longer battery life. The BlueNRG offers the option of interfacing with external microcontrollers using SPI transport layer.
BlueNRG-MS

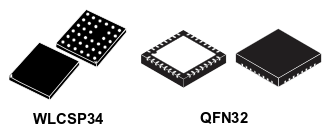

Bluetooth Low Energy Network Processor supporting Bluetooth 4.1 core specification
The BlueNRG-MS is a very low power Bluetooth low energy (BLE) single-mode network processor, compliant with Bluetooth specification v4.1. The BlueNRG-MS supports multiple roles simultaneously, and can act at the same time as Bluetooth Smart sensor and hub device.
The entire Bluetooth low energy stack runs on the embedded Cortex M0 core. The non-volatile Flash memory allows on-field stack upgrading. The BlueNRG-MS allows applications to meet of the tight advisable peak current requirements imposed with the use of standard coin cell batteries. The maximum peak current is only 10 mA at 1 dBm of output power. Ultra low-power sleep modes and very short transition times between operating modes allow very low average current consumption, resulting in longer battery life. The BlueNRG-MS offers the option of interfacing with external microcontrollers using SPI transport layer.
The BlueNRG-MS is a very low power Bluetooth low energy (BLE) single-mode network processor, compliant with Bluetooth specification v4.1. The BlueNRG-MS supports multiple roles simultaneously, and can act at the same time as Bluetooth Smart sensor and hub device.
The entire Bluetooth low energy stack runs on the embedded Cortex M0 core. The non-volatile Flash memory allows on-field stack upgrading. The BlueNRG-MS allows applications to meet of the tight advisable peak current requirements imposed with the use of standard coin cell batteries. The maximum peak current is only 10 mA at 1 dBm of output power. Ultra low-power sleep modes and very short transition times between operating modes allow very low average current consumption, resulting in longer battery life. The BlueNRG-MS offers the option of interfacing with external microcontrollers using SPI transport layer.
-
BT technology
BT technology
Up to now there are different release of BT, for example there is v2.1, v3.0, BTLE that are v.4.x
For see the differences from the different release of BT see here and here.
Here I want to highlight the differences inside the BT 4.x
The latest Bluetooth version 4.x boasts two additional certifications: Smart Ready and Smart .
For see the differences from the different release of BT see here and here.
Here I want to highlight the differences inside the BT 4.x
The latest Bluetooth version 4.x boasts two additional certifications: Smart Ready and Smart .
- BT 4.x Smart Ready identifies the dual-mode support or compatibility with older standards and more advanced features.
- BT 4.x Smart is for simple devices that aim to reduce consumption, this version is NOT copatible with the older BT standards.
Link
Click here for: official link to STM BlueTooth Modules
Click here for: official link to STM BlueTooth Chips
Click here for: official link to STM BlueTooth Chips
-
Single Chip Solutions
Single Chip Solutions
-
BlueNRG (BT 4.0 smart)
The BlueNRG is a very low power Bluetooth low energy (BLE) single-mode network processor, compliant with Bluetooth specification v4.0 Smart, see here.
The BlueNRG can act as master or slave.
The entire Bluetooth low energy stack runs on the embedded Cortex M0 core.
The non-volatile Flash memory allows on-field stack upgrading.
The BlueNRG allows applications to meet of the tight advisable peak current requirements imposed with the use of standard coin cell batteries.
The maximum peak current is only 10 mA at 1 dBm of output power.
Ultra low-power sleep modes and very short transition times between operating modes allow very low average current consumption, resulting in longer battery life.
The BlueNRG offers the option of interfacing with external microcontrollers using SPI transport layer.
The external Apple authentication coprocessor is NOT request for B.T. 4.x
-
ATTENTION:
At the moment, read the: ReadMe_APP_and_NUCLEO-L053R8andXNUCLEO-IDB04A1.pdf
The topics inside the file are shown below.
-
BlueNRG_MS (BT 4.1 smart)
Bluetooth Low Energy Network Processor supporting Bluetooth 4.1 core specification
The BlueNRG-MS is a very low power Bluetooth low energy (BLE) single-mode network processor, compliant with Bluetooth specification v4.1.
The BlueNRG-MS supports multiple roles simultaneously, and can act at the same time as Bluetooth Smart sensor and hub device.
The entire Bluetooth low energy stack runs on the embedded Cortex M0 core. The non-volatile Flash memory allows on-field stack upgrading.
The BlueNRG-MS allows applications to meet of the tight advisable peak current requirements imposed with the use of standard coin cell batteries.
The maximum peak current is only 10 mA at 1 dBm of output power.
Ultra low-power sleep modes and very short transition times between operating modes allow very low average current consumption, resulting in longer battery life.
The BlueNRG-MS offers the option of interfacing with external microcontrollers using SPI transport layer.
The external Apple authentication coprocessor is NOT request for B.T. 4.x
BlueNRG (BT 4.0 smart)
The BlueNRG is a very low power Bluetooth low energy (BLE) single-mode network processor, compliant with Bluetooth specification v4.0 Smart, see here.
The BlueNRG can act as master or slave.
The entire Bluetooth low energy stack runs on the embedded Cortex M0 core.
The non-volatile Flash memory allows on-field stack upgrading.
The BlueNRG allows applications to meet of the tight advisable peak current requirements imposed with the use of standard coin cell batteries.
The maximum peak current is only 10 mA at 1 dBm of output power.
Ultra low-power sleep modes and very short transition times between operating modes allow very low average current consumption, resulting in longer battery life.
The BlueNRG offers the option of interfacing with external microcontrollers using SPI transport layer.
The external Apple authentication coprocessor is NOT request for B.T. 4.x
The link of BlueNRG is here.
The STEVAL-IDB002V1 evaboard is here.
The X-NUCLEO evaboard is here.
USB dongle - STEVAL-IDB003V1 is an evaluation board based on BlueNRG
More info on X-NUCLEO evaboard are here.
More info on NUCLEO evaboard are here.
BlueNRG Guideline from Evaluation to Production V3.0
The STEVAL-IDB002V1 evaboard is here.
The X-NUCLEO evaboard is here.
USB dongle - STEVAL-IDB003V1 is an evaluation board based on BlueNRG
More info on X-NUCLEO evaboard are here.
More info on NUCLEO evaboard are here.
BlueNRG Guideline from Evaluation to Production V3.0
-
Tutorial:

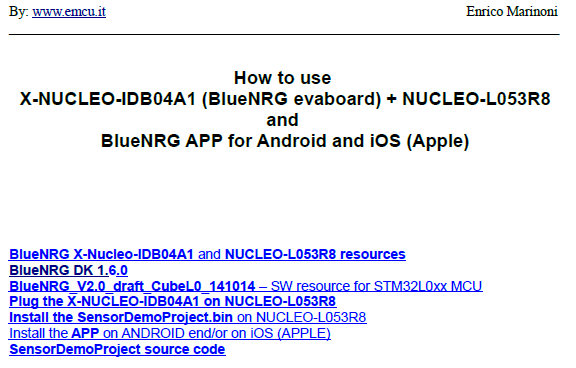

BlueNRG + NUCLEO-L053R8 + APP
Inside this tutorial you find the source code for using BlueNRG evaboard (X-NUCLEO-IDB04A1) in conjunction with NUCLEO-L053R8 and APP (BlueNRG APP) for ANDROID and iOS (Apple).
More info on NUCLEO evaboard are here.
More info on X-NUCLEO evaboard are here.
The files inside the tutorial are show below.
More info on NUCLEO evaboard are here.
More info on X-NUCLEO evaboard are here.
The files inside the tutorial are show below.
At the moment, the: BlueNRG + NUCLEO-L053R8 + APP
shall be issued only to SILICA/STM customers.
If you are a customers of SILICA send email to me and request me:
shall be issued only to SILICA/STM customers.
If you are a customers of SILICA send email to me and request me:
Password for: BlueNRG + NUCLEO-L053R8 + APP
please specify also your City, Country and your contact in SILICA.
If you are STM customer please contact directly your local office of STM.
please specify also your City, Country and your contact in SILICA.
If you are STM customer please contact directly your local office of STM.

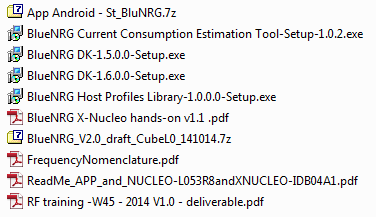

At the moment, read the: ReadMe_APP_and_NUCLEO-L053R8andXNUCLEO-IDB04A1.pdf
The topics inside the file are shown below.
-
BlueNRG_MS (BT 4.1 smart)
Bluetooth Low Energy Network Processor supporting Bluetooth 4.1 core specification
The BlueNRG-MS is a very low power Bluetooth low energy (BLE) single-mode network processor, compliant with Bluetooth specification v4.1.
The BlueNRG-MS supports multiple roles simultaneously, and can act at the same time as Bluetooth Smart sensor and hub device.
The entire Bluetooth low energy stack runs on the embedded Cortex M0 core. The non-volatile Flash memory allows on-field stack upgrading.
The BlueNRG-MS allows applications to meet of the tight advisable peak current requirements imposed with the use of standard coin cell batteries.
The maximum peak current is only 10 mA at 1 dBm of output power.
Ultra low-power sleep modes and very short transition times between operating modes allow very low average current consumption, resulting in longer battery life.
The BlueNRG-MS offers the option of interfacing with external microcontrollers using SPI transport layer.
The external Apple authentication coprocessor is NOT request for B.T. 4.x
The link of BlueNRG_MS is here.

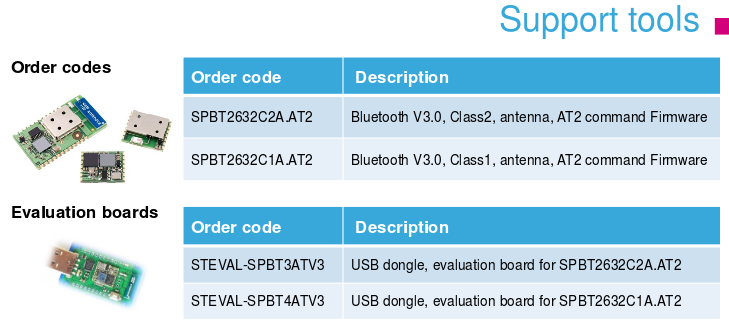

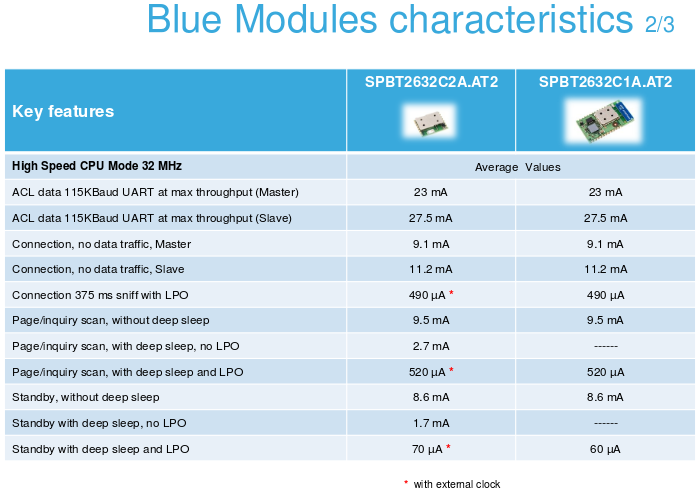

SPBT2632C1A.AT2

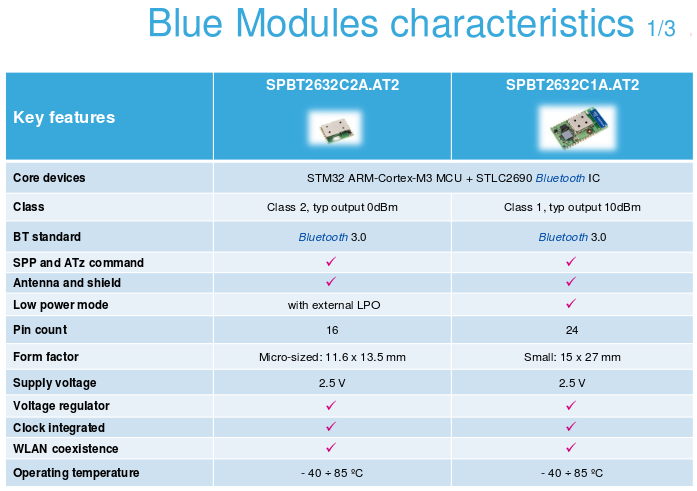

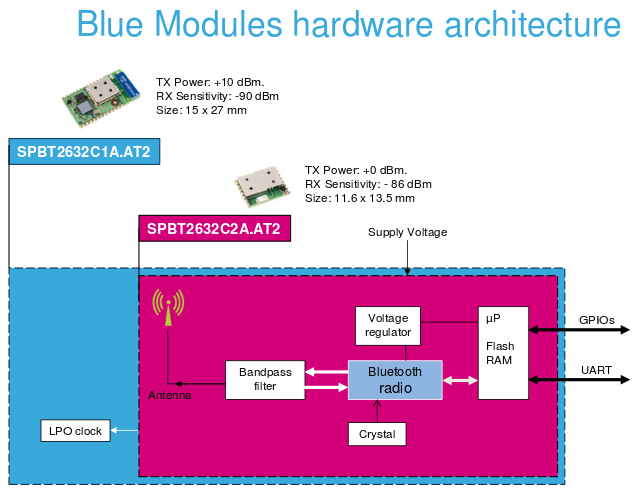

The SPBT2632C1A.AT2 is an easy to use Bluetooth module, compliant with Bluetooth v3.0.
The module provides complete RF platform in a small form factor.
The SPBT2632C1A.AT2 enables electronic devices with wireless connectivity, not requiring any RF experience or expertise for integration into the final product.
The module is designed for maximum performance in a minimal space including fast speed UART and 16 general purpose I/O lines, several serial interface options, and up to 1.5 Mbps data throughput.
An optimized design allows the integration of a complete working Bluetooth modem, including antenna and LPO (low power oscillator), enabling low power mode capability in the minimum possible size.
More info are here.
SPBT2632C2A.AT2
The SPBT2632C2A.AT2 is an easy to use Bluetooth module, compliant with Bluetooth v3.0.
The module is the smallest form factor available which provides a complete RF platform.
The SPBT2632C2A.AT2 enables electronic devices with wireless connectivity, not requiring any RF experience or expertise for integration into the final product.
The module is designed for maximum performance in a minimal space including fast speed UART and 7 general purpose I/O lines, several serial interface options, and up to 1.5 Mbps data throughput.
More info are here.
The SPBT2632C1A.AT2 is an easy to use Bluetooth module, compliant with Bluetooth v3.0.
The module provides complete RF platform in a small form factor.
The SPBT2632C1A.AT2 enables electronic devices with wireless connectivity, not requiring any RF experience or expertise for integration into the final product.
The module is designed for maximum performance in a minimal space including fast speed UART and 16 general purpose I/O lines, several serial interface options, and up to 1.5 Mbps data throughput.
An optimized design allows the integration of a complete working Bluetooth modem, including antenna and LPO (low power oscillator), enabling low power mode capability in the minimum possible size.
More info are here.
SPBT2632C2A.AT2
The SPBT2632C2A.AT2 is an easy to use Bluetooth module, compliant with Bluetooth v3.0.
The module is the smallest form factor available which provides a complete RF platform.
The SPBT2632C2A.AT2 enables electronic devices with wireless connectivity, not requiring any RF experience or expertise for integration into the final product.
The module is designed for maximum performance in a minimal space including fast speed UART and 7 general purpose I/O lines, several serial interface options, and up to 1.5 Mbps data throughput.
More info are here.
-
Antenna
Chip antenna:
Antenova p/n 30-30-A5839-01
Murata p/n ANCV12G44SAA127
Pulse p/n W3008
Yageo p/n CAN4311153002451K
Murata p/n ANCV12G44SAA127
Pulse p/n W3008
Yageo p/n CAN4311153002451K
Whip antenna:
Antenova Titanis
It therefore requires an antenna cable SDA-SDA U.FL.
To connect the module with cable-U.FL SDA we can suggest a MOLEX p/n 897610980.
The documentation is here.
To connect the module with cable-U.FL SDA we can suggest a MOLEX p/n 897610980.
The documentation is here.
