WiFi
Quick start guide
SPWF01SA.11 and SPWF01SC.11

Home Page
WiFi page

Introductions
Reset the WiFi module
Radio signal strength received
SOCKET
Mini AP
Example s how to connect the WiFi module to an AP
Mode Point to Point / AD-HOC or IBSS network
General purpose commands

-
Introductions

We suppose that you already know how to use the Silica BRANCA board that is an eva board for the STM WiFi module named: SPWF01Sxxx
If for you is the first time that using the Silica BRANCA board, please read here and also the Hands on Session that is here.
If you use a corporate PC, for use SOCKET in conjunction with server.exe (Socket Server), you must disable the FIREWALL.
On some corporate PC this is not possible, in this case I suggest to use your home PC for do the Socket test.

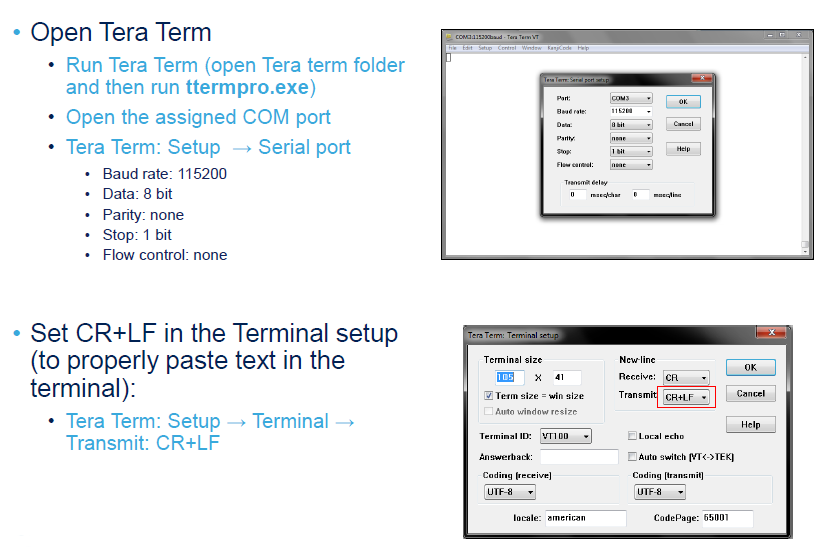

If you connect the Branca-Board to the PC, we suggest to use Tera Term and the configuration is shown below.

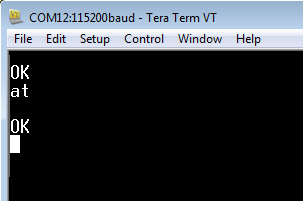

For test the connection between PC/TeraTerm and the Branca-Board type, in Tera Term, the command: AT
You must see the response: OK
See below.

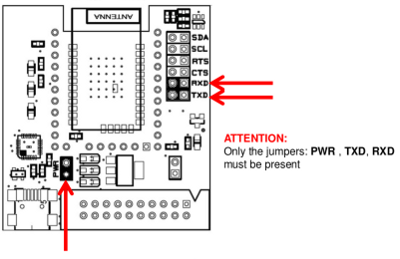

See below, the jumpers on the Silica Branca Board.

Reset the WiFi module

AT&F

restores the factory default values of the configuration variables and writes them to non-volatile storage.

-
Radio signal strength received

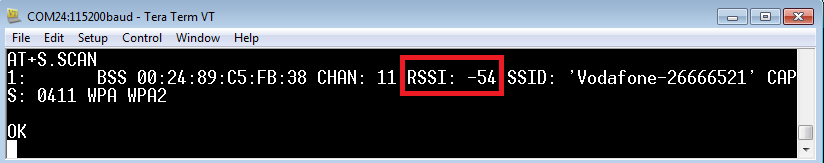

AT+S.SCAN

See below the red box.

SOCKET

Open a network socket

AT+S.SOCKON = ID, PORT, PROTOCOL, ind

ID == Host Name - IP or Internet name (www.google.com)
PORT == The IP of the Computer or Host that you need connect (TCP/UDP)
PROTOCOL == t for TCP socket, u for UDP socket
ind == indicate when data has arrived (optional)

Up to 8 socket connections at same time.

Attention: the WiFi module at the moment (January 2014) is CLIENT this means that only the WiFi module have the possibility to open a socket for connect a remote SERVER (PC, HOST, www...).
In other words, is not possible for a PC or a HOST open a socket to connect the WiFi module.

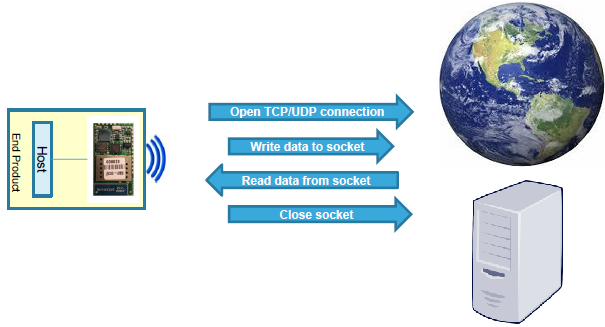

The possibility of connection are shown below.

Below there is an example that open a socket to send a string of data to the PC.

For PC with WINDOWS

Open the TCP socket server (disable the firewall to properly run it).
Run the program:
server.exe

Server.exe is a: TCP server listens for incoming connections on the port 32000, it sends back all data received.
Please read also this note.

For PC with LINUX

Use my PYTHON server, see below:

#!/user/bin/python

import socket, select

data = 'a'

#Function to broadcast chat messages to all connected clients
def broadcast_data (sock, message):
    #Do not send the message to master socket and the client who has send us the message
    for socket in CONNECTION_LIST:
        if socket != server_socket and socket != sock :
            try :
                socket.send(message)
            except :
                # broken socket connection may be, chat client pressed ctrl+c for example
                socket.close()
                CONNECTION_LIST.remove(socket)

if __name__ == "__main__":

    # List to keep track of socket descriptors
    CONNECTION_LIST = []
    RECV_BUFFER = 4096 # Advisable to keep it as an exponent of 2
    PORT = 32000

    server_socket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    # this has no effect, why ?
    server_socket.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
    server_socket.bind(("0.0.0.0", PORT))
    server_socket.listen(10)

    # Add server socket to the list of readable connections
    CONNECTION_LIST.append(server_socket)

    print " "
    print "*************************************** by www.emcu.it"
    print "Chat server started on port " + str(PORT)
    print "For end the connection and end this program send me: @"
    print "For end this program type: ctrl + c"
    print " "

    while data != '@':
        # Get the list sockets which are ready to be read through select
        read_sockets,write_sockets,error_sockets = select.select(CONNECTION_LIST,[],[])

        for sock in read_sockets:
            #New connection
            if sock == server_socket:
                # Handle the case in which there is a new connection recieved through server_socket
                sockfd, addr = server_socket.accept()
                CONNECTION_LIST.append(sockfd)
                print "Client (%s, %s) connected" % addr

                broadcast_data(sockfd, "[%s:%s] entered room\n" % addr)

            #Some incoming message from a client
            else:
                # Data recieved from client, process it
                try:
                    #In Windows, sometimes when a TCP program closes abruptly,
                    # a "Connection reset by peer" exception will be thrown
                    data = sock.recv(RECV_BUFFER)
            print "Received: " + data
            if data == '@':
                        sock.close()
                        #CONNECTION_LIST.remove(sock)
                    if data:
                        broadcast_data(sock, "\r" + '<' + str(sock.getpeername()) + '> ' + data)

                except:
                    broadcast_data(sock, "Client (%s, %s) is offline" % addr)
                    print "Client (%s, %s) is offline" % addr
                    sock.close()
                    CONNECTION_LIST.remove(sock)
            print " "
            print " *** END program ***"
            print " "
                    continue

    server_socket.close()

This Python server is tested on PC with Xubuntu and on RaspBerry Pi with RaspBian (Linux)

Open TeraTerm and follow the step below.

NOTE:

BOLD == command that you must write on TeraTerm
BLUE == answer from the WiFi module
ITALIC == character that must be type on Teraterm but that you don't see on TeraTerm but you must see on the server.exe window.

AT+S.SOCKON=192.168.1.6,32000,t,ind<CR>

ID: 00

AT+S.SOCKW=00,13<CR>

Hello World<CR>

+WIND:55:Pending Data:0:13

AT+S.SOCKC=00<CR>

The above command Close the socket 00

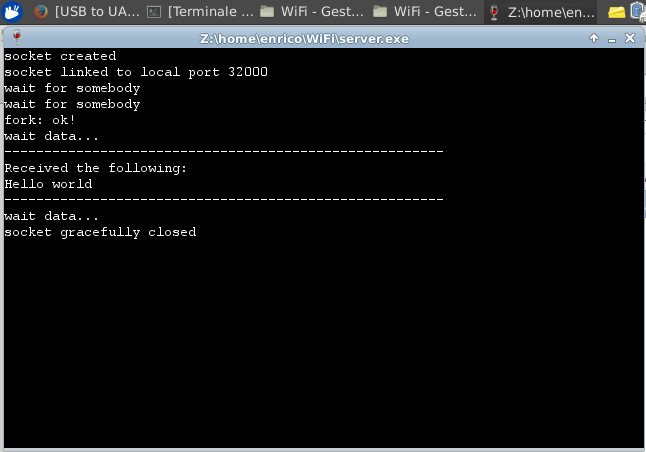

Below is what you must see in server.exe screen.

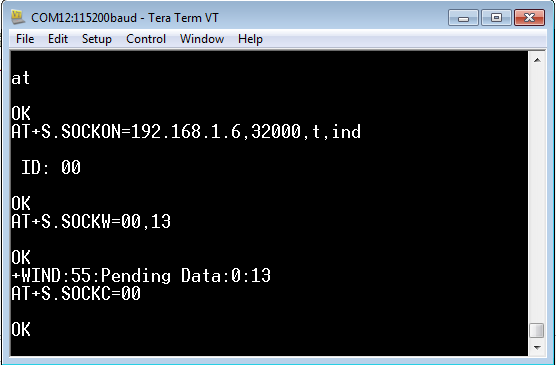

Below is what you must see in TeraTerm

NOTE:

server.exe and cygwin1.dll must be in the same directory.
Server.exe is tested on Windows7 and on Xubuntu using Vine.
Click here for download server.exe and cygwin1.dll

Mini AP

MINI AP without password

AT+S.SCFG=wifi_mode,3
AT+S.SCFG=wifi_priv_mode,0
at+s.ssidtxt=EM
at&w
at+cfun=1

NOTE:

EM is the name of the mini AP.

MINI AP with password

at+s.scfg=wifi_mode,3
at+s.ssidtxt=EM

at+s.scfg=wifi_priv_mode,1
AT+S.SCFG=wifi_wep_keys[0],7465737431

AT+S.SCFG=wifi_wep_key_lens,05
AT+S.SCFG=wifi_wep_default_key,0

at&w
at+cfun=1

NOTE:

EM is the name of the mini AP.
7465737431 is the password that is equivalent to test1

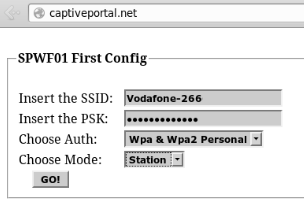

Also is available a web page, for the configuration of your WiFi module.
http://captiveportal.net

Some connection examples to an AP

ANDROID - the configuration si:

HotSpot
WPA2 PSK

Below the commands to use on WiFi module.

at+s.ssidtxt=AndroidEM
at+s.scfg=wifi_wpa_psk_text,cb41c492e2a9
at+s.scfg=wifi_priv_mode,2
at+s.scfg=wifi_mode,1
at+s.scfg=ip_use_dhcp,1
at&w
at+cfun=1

ROUTER VodafonStation 2

at+s.ssidtxt=Vodafone-26666521
at+s.scfg=wifi_wpa_psk_text,enrico
at+s.scfg=wifi_priv_mode,2
at+s.scfg=wifi_mode,1
at+s.scfg=ip_use_dhcp,1
at&w
at+cfun=1

ROUTER-Belkin N150 and BlackBerry (HotSpot) used during STDay 2013 in Italy

at+s.ssidtxt=BBMHem
at+s.scfg=wifi_wpa_psk_text,enrico321
at+s.scfg=wifi_priv_mode,2
at+s.scfg=wifi_mode,1
at+s.scfg=ip_use_dhcp,1
at&w
at+cfun=1

ROUTER-FRITZ Box 7390

at+s.ssidtxt=EMCU7390
at+s.scfg=wifi_wpa_psk_text,enrico
at+s.scfg=wifi_priv_mode,2
at+s.scfg=wifi_mode,1
at+s.scfg=ip_use_dhcp,1
at&w
at+cfun=1

Mode Point to Point / AD-HOC or IBSS network

Associate the iOS device with the ADHOC network created using the WiFi module

AT+S.SSIDTXT=emADHOC
AT+S.SCFG=wifi_priv_mode,0
AT+S.SCFG=wifi_mode,2
AT+S.SCFG=ip_ipaddr,192.161.0.3
AT+S.SCFG=ip_gw,192.161.0.255
AT+S.SCFG=ip_dns,192.161.0.255
AT+S.SCFG=ip_netmask,255.255.255.0
AT+S.SCFG=ip_use_dhcp,0
AT&W
AT+CFUN=1

After the restart of the WiFi module, find your IP address, type:

AT+S.STS

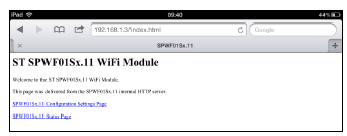

Open the SAFARI web browser (on iPAD) and insert your IP address + /index.html.

192.168.1.3/index.html

General purpose commands

*** Reset - restores the factory default values of the configuration variables and writes them to non-volatile storage.
AT&F

*** Lists the types, sizes, and names of all the existing files present on the WiFi module.
AT+s.fsl

*** Deletes an existing file by name. Static files may not be deleted, only overridden.
at+s.fsd=file_name

*** Displays the name and value of all configuration variables in the WiFi module
AT&V

*** Displays the current values of all the status variables.
AT+S.STS

*** enable/disable Wi-Fi device
0 disable
1 enable

AT+S.WIFI=0
AT+S.WIFI=1

*** trigger Wi-Fi reassociation sequence
AT+S.ROAM

Example:

AT+S.ROAM
OK
+WIND:41:WiFi Disassociation
+WIND:21:WiFi Scanning
+WIND:35:WiFi Scan Complete (0x0)
+WIND:39:FOUND: 80:60:07:56:17:48 FREQ: 2437 RSSI: -45 SSID: 'BBMHem' CAPS: 0431 WPA: 0 WPA2: 20
+WIND:19:WiFi Join: 80:60:07:56:17:48
+WIND:25:WiFi Association with 'BBMHem' successful
+WIND:51:WPA Handshake Complete
+WIND:24:WiFi Up: 10.0.0.100

*** Set the IP addres
AT+S.SCFG=ip_ipaddr,192.168.178.36

*** Return the IP addres
AT+S.GCFG=ip_ipaddr

*** ReStart the WiFi

AT+CFUN=1

For a complete list of command see the User Manual of the WiFi module, see link here (SPWF01SA.11 and SPWF01SC.11).
