PIR Sensor
built using the:
NUCLEO-L011K4
+
PIR sensor (EKMC1603111)
Home
Page
STM32F4xx Page
STM32 Page
Some info about the SW that I developed
My sw is free and is here, the Ref.Cod. is: PIR-L011K4
Please ask me the password for open the: PIR-L011K4
and specify also your: Name, City and Country.

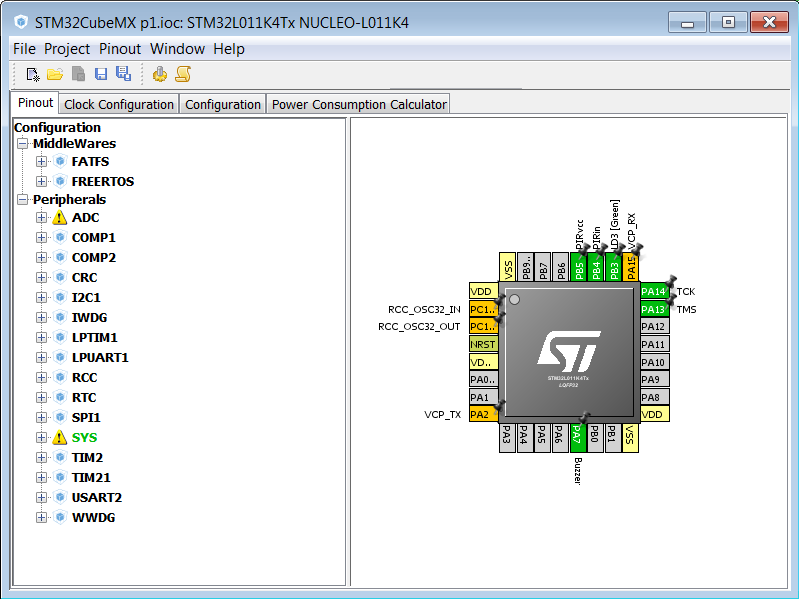

I did everything starting from CUBE and STM32L0 library.
Files for CUBE and for KEIL are in my PIR-L011K4 package.
If you use another compiler open CUBE and regenerate the project for your compiler.
CUBE today supports: IAR, KEIL, AC6 and ATOLLIC.
As mentioned above, I used the KEIL compiler (for STM32L0xx and F0xx it's free), for start the project you must go in this directory:
.....\p1\MDK-ARM
and double click on the file:
p1.uvprojx
STM32F4xx Page
STM32 Page
Date:
October 2016
Name: PIR Sensor
Note: This SW was tested on NUCLEO-L011K4 and compiled using the KEIL v.5.20
Program Size: Code=4708 RO-data=252 RW-data=12 ZI-data=1028

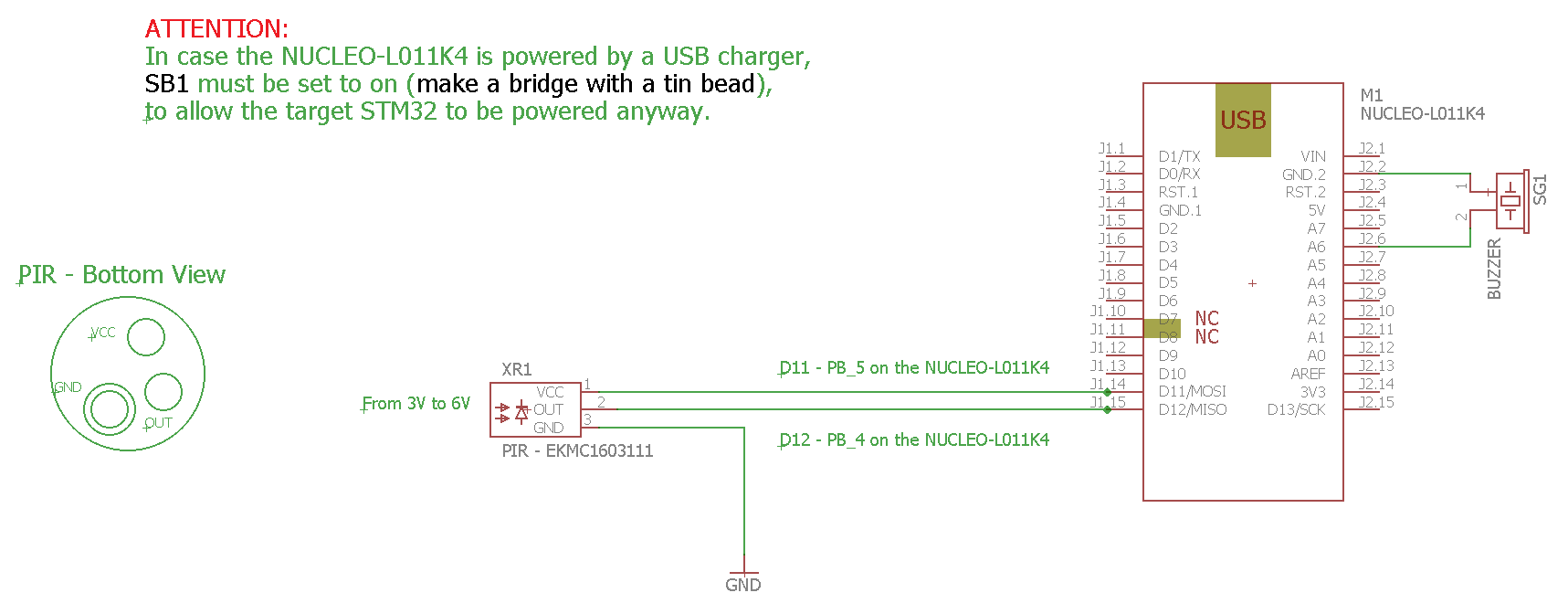

Introduction:

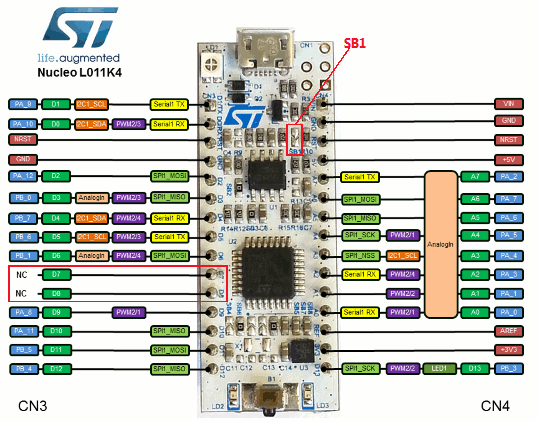

Electronics
used for this project
Name: PIR Sensor
Note: This SW was tested on NUCLEO-L011K4 and compiled using the KEIL v.5.20
Program Size: Code=4708 RO-data=252 RW-data=12 ZI-data=1028
Introduction:
The idea to
develop this project came to me when I happened in my hands a PIR
sensor EKMC1603111.

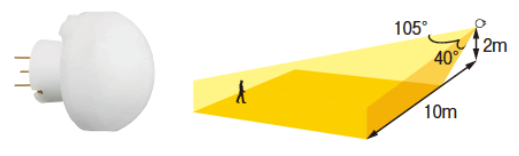

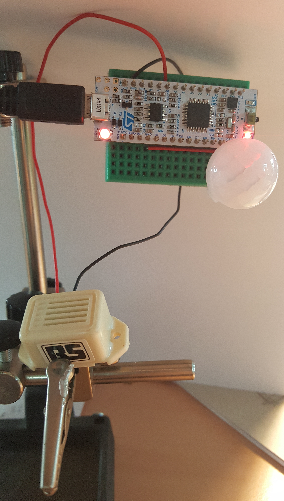

Below there is the result of my work.
Certainly this is not a complete project, it's just a project to test the performance of the PIR sensor.
In a real project you must provide a potentiometer to adjust the alarm duration and an output relay.
Below there is the result of my work.
Certainly this is not a complete project, it's just a project to test the performance of the PIR sensor.
In a real project you must provide a potentiometer to adjust the alarm duration and an output relay.
Some info about the SW that I developed
My sw is free and is here, the Ref.Cod. is: PIR-L011K4
Please ask me the password for open the: PIR-L011K4
and specify also your: Name, City and Country.
I did everything starting from CUBE and STM32L0 library.
Files for CUBE and for KEIL are in my PIR-L011K4 package.
If you use another compiler open CUBE and regenerate the project for your compiler.
CUBE today supports: IAR, KEIL, AC6 and ATOLLIC.
As mentioned above, I used the KEIL compiler (for STM32L0xx and F0xx it's free), for start the project you must go in this directory:
.....\p1\MDK-ARM
and double click on the file:
p1.uvprojx
