STM32F4-Discovery
&
USB Virtual COM



Home Page
STM32F4xx Page
STM32 Page

By:           www.emcu.it
Date:       January 2016
Name:     USB Virtual COM (or USB CDC device)
Note:       This SW was tested on STM32F4-Discovery and compiled using the KEIL v.5.16a
                STM32F4-Discovery page is here:
                http://www.emcu.it/STM32F4xx/STM32F4xx.html#STM32F4-Discovery_
                see also here:
                This is a modification of the: Majerle example

How to use:
                Connect the STM32F4-Discovery micro USB to a PC.
                On the PC run TeraTerm and configure it with this parameters:
                                BaudRate:          115200
                                Data Bit:            8
                                Parity:                NONE
                                Stop Bit:            1
                                Flow Control:      NONE
                Any character typed on PC (using TeraTerm) is received from the
                STM32F4-Discovery micro USB and it is sent back to the PC (again via micro USB).

Remember to instal on your PC the:
STM Virtual COM Port Driver that is here.

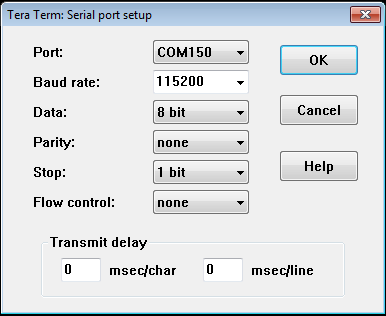

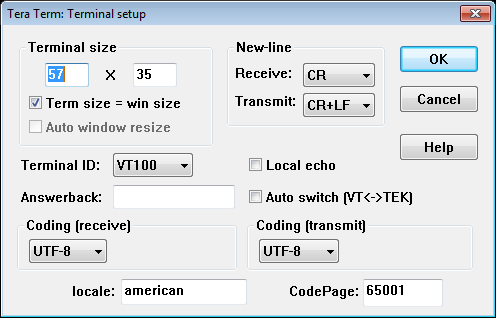

Below there are the TeraTerm SetUp







How to run this example

Download the example and unzip it.
Please ask me the password for unzip this example, see at the end of this page.
Go in the directory:
C:\....\F4Discovery\21-STM32Fxxx_USB_DEVICE_CDC
and run the:
project.uvprojx

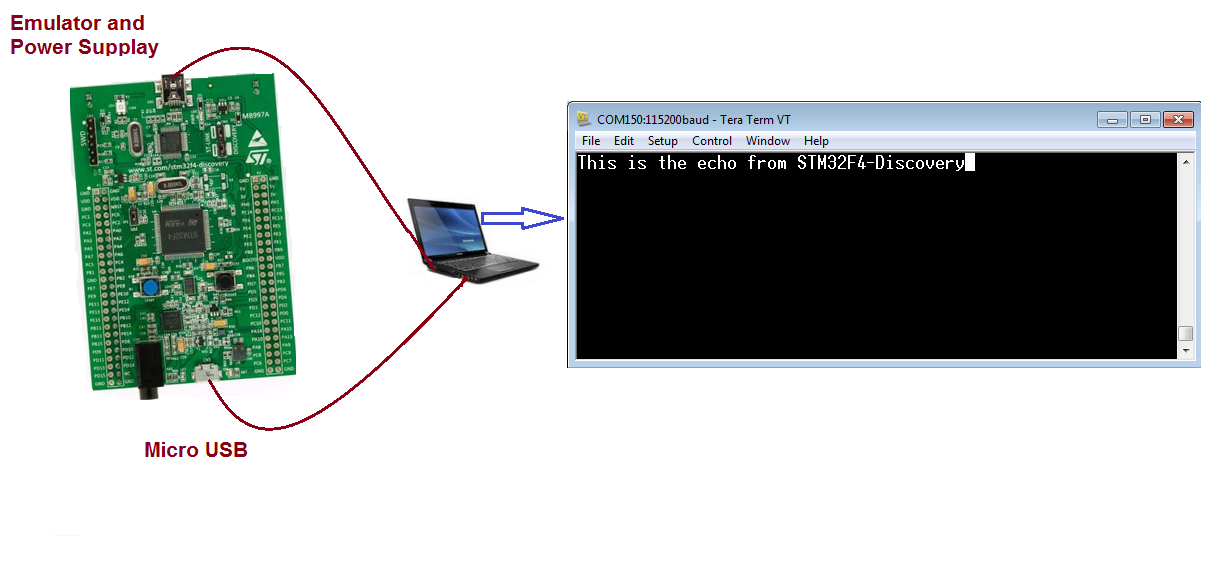

The wiring from STM32F4-Discovery and PC



The SW is free and the Ref.Cod. is: STM32F4Discovery-USBVirtualCOM
Please ask me the password for open the: STM32F4Discovery-USBVirtualCOM
and specify also your City and Country.
