Name: USB Virtual COM (or USB CDC device)
Note: This SW was tested on STM3210E-EVAL and compiled using the KEIL v.5.16a
STM3210E-EVAL page is here, on this board there is the: STM32F103ZE og ZG mcu (Cortex M3)
How to use:
Connect the STM3210E-EVAL USB to a PC.
On the PC run TeraTerm and configure it with this parameters:
BaudRate: 115200
Data Bit: 8
Parity: NONE
Stop Bit: 1
Flow Control: NONE
Any character typed on PC (using TeraTerm) is received from the
STM3210E-EVAL USB and it is sent back to the PC (again via USB Virtual COM).

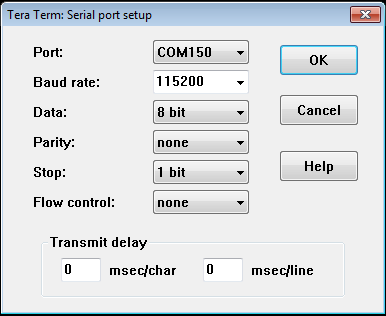

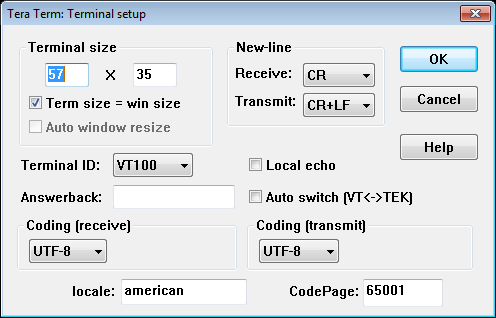

Below there are the TeraTerm SetUp
Name: USB Virtual COM (or USB CDC device)
Note: This SW was tested on STM3210E-EVAL and compiled using the KEIL v.5.16a
STM3210E-EVAL page is here, on this board there is the: STM32F103ZE og ZG mcu (Cortex M3)
How to use:
Connect the STM3210E-EVAL USB to a PC.
On the PC run TeraTerm and configure it with this parameters:
BaudRate: 115200
Data Bit: 8
Parity: NONE
Stop Bit: 1
Flow Control: NONE
Any character typed on PC (using TeraTerm) is received from the
STM3210E-EVAL USB and it is sent back to the PC (again via USB Virtual COM).
Below there are the TeraTerm SetUp
How to run this example
Download the example and unzip it.
Please ask me the password for unzip this example, see at the end of this page.
Go in the directory:
Download the example and unzip it.
Please ask me the password for unzip this example, see at the end of this page.
Go in the directory:
C:\...\Projects\STM3210E_EVAL\Applications\USB_Device\CDC_Standalone\MDK-ARM
and run the:Project.uvprojx
SW explanations

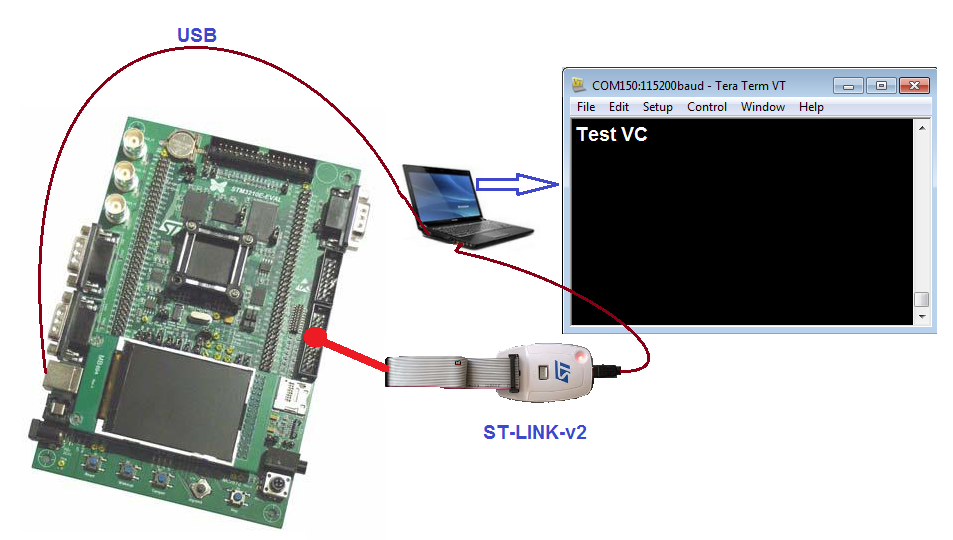

The wiring from STM3210E-EVAL and PC
Any
character typed on PC (using TeraTerm) is received from the
STM3210E-EVAL USB and it is sent back to the PC (again via USB Virual
COM).
All is based on HAL Libraries.
The management of the USB Virtual COM is made in the file: usbd_cdc_interface.c
See the function: static int8_t CDC_Itf_Receive(uint8_t* Buf, uint32_t *Len)
from line n.332
This example is a modification of the original STM example, that use a USB Virtual COM for receives data and send it via USART (TX).
The data received from USART (RX) are sent via USB (Virtual COM) to PC.
The above function (USB - USART - USB) has been disabled.
To enable it remove the // from line n.334 and comment from the line n.338 to the line n.341.
ATTENTION:
All is based on HAL Libraries.
The management of the USB Virtual COM is made in the file: usbd_cdc_interface.c
See the function: static int8_t CDC_Itf_Receive(uint8_t* Buf, uint32_t *Len)
from line n.332
This example is a modification of the original STM example, that use a USB Virtual COM for receives data and send it via USART (TX).
The data received from USART (RX) are sent via USB (Virtual COM) to PC.
The above function (USB - USART - USB) has been disabled.
To enable it remove the // from line n.334 and comment from the line n.338 to the line n.341.
ATTENTION:
As I already explained, this SW was tested on STM3210E-EVAL.

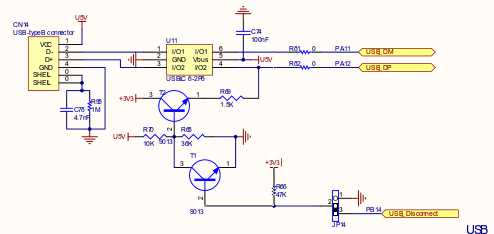

The STM3210E-EVAL use on pin USB_DP a couple of two BJT (T1 and T2) to connect the 1K5 resistor to 3V3.

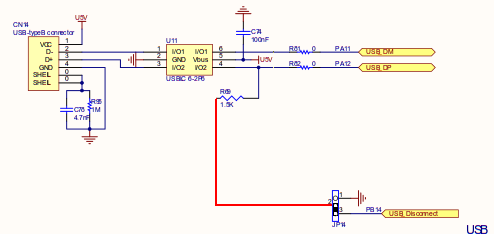

If on your board, the USB_DP is connected directly to STM32F1xx (see below), substitute (in the project) the file: usbd_conf.c
with the file contained in the zip file: usbd_conf.zip
Inside the usbd_conf.zip there is the new usbd_conf.c that is compliant to the USB_DP connected directly to STM32F1xx.
The STM3210E-EVAL use on pin USB_DP a couple of two BJT (T1 and T2) to connect the 1K5 resistor to 3V3.
If on your board, the USB_DP is connected directly to STM32F1xx (see below), substitute (in the project) the file: usbd_conf.c
with the file contained in the zip file: usbd_conf.zip
Inside the usbd_conf.zip there is the new usbd_conf.c that is compliant to the USB_DP connected directly to STM32F1xx.
The wiring from STM3210E-EVAL and PC

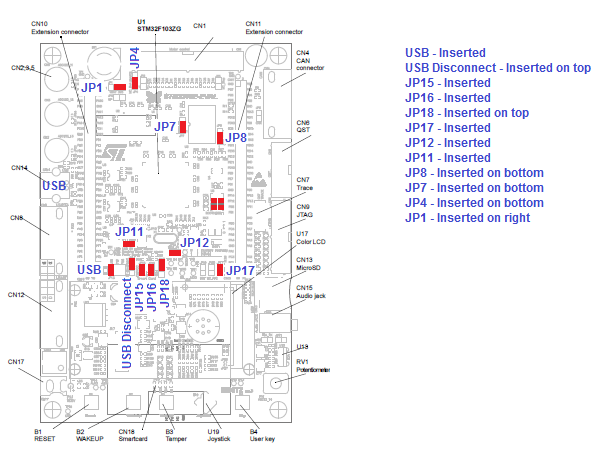

The jumpers on STM3210E-EVAL must be:
The SW is free
and the Ref.Cod. is: STM3210E-EVAL-USBVirtualCOM
Please ask me
the password for open the: STM3210E-EVAL-USBVirtualCOM
and specify also your City and Country.
