Product Description
ST2100 STreamPlug ST2100: broadband powerline communication SoC (200MBit)
ST7590 Narrow-band OFDM power line networking PRIME compliant system-on-chip (128KBit)
ST7538Q B-FSK - Power Line Transceiver (4800Bit)
ST7580 FSK, N-PSK multi-mode power line networking system-on-chip (28,8KBit)
ST7580_presentation and comparison to ST7540
ST7580 EvaBoard for NUCLEO
Training concerning ST7580 plus Nucleo and ModBUS
EVALKITST7580-1
ST7580 EvaBoard for NUCLEO
Training concerning ST7580 plus Nucleo and ModBUS
EVALKITST7580-1
ST75MM Meters and More standard compliant power line communication system system-on-chip (4800Bit)
ST7570 S-FSK power line networking system-on-chip (2400Bit)
ST7540 FSK stripped down power line transceiver (4800Bit)
ST7538 FSK power line transceiver (4800Bit)
-
ST7540 FSK stripped down power line transceiver
-
STEVAL-IHP003V1 remote control network based on PLM ST7540 and STM32
ST7570 S-FSK power line networking system-on-chip
ST7580 FSK, N-PSK multi-mode power line networking system-on-chip
ST7590 Narrow-band OFDM power line networking PRIME compliant system-on-chip

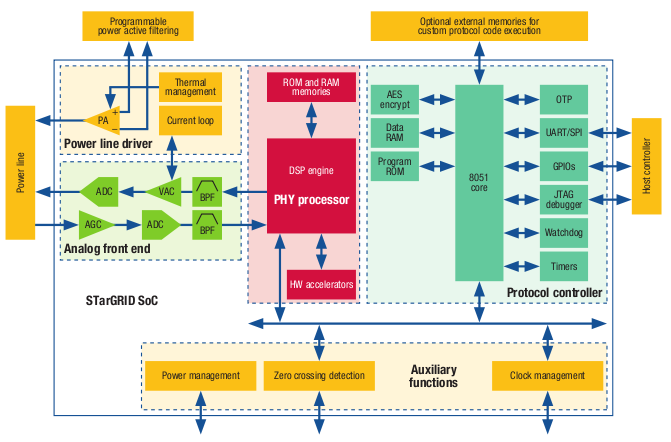

The STarGRID®SoC
ST75MM device is a flexible power line communication system-on-chip
combining a high performing PHY processor and a protocol controller
core implementing the turnkey METERS AND MORE
protocol along with the fully integrated “Analog Front-End” (AFE) and
line driver in a single chip, for future-proof, compact and cost
effective advanced metering infrastructure solutions.
STCOM Powerline communication and application system-on-chip (500KBit)The STCOM is a device that integrates a power line communication (PLC) modem and a high-performance application core.
The PLC modem architecture has been designed to target EN50065, FCC, ARIB compliant PLC applications. Together with the application core, it enables the STCOM to support the PRIME, G1, G3, IEEE 1901.2, METERS AND MORE® and other narrow band PLC protocol specifications.
STCOMET Smart meter and powerline communication system-on-chip (500KBit)The PLC modem architecture has been designed to target EN50065, FCC, ARIB compliant PLC applications. Together with the application core, it enables the STCOM to support the PRIME, G1, G3, IEEE 1901.2, METERS AND MORE® and other narrow band PLC protocol specifications.
The
STCOMET is a device that integrates a power line communication (PLC)
modem, a high-performance application core and metrology functions.
The PLC modem architecture has been designed to target EN50065, FCC, ARIB compliant PLC applications. Together with the application core, it enables the STCOMET to support the PRIME, G1, G3, IEEE 1901.2, METERS AND MORE® and other narrow band PLC protocol specifications.
The metrology sub-system is suitable for EN 50470-1, EN 50470-3, IEC 62053-21, IEC 62053-22 and IEC 62053-23 compliant class1, class0.5 and class0.2 AC metering applications.
The PLC modem architecture has been designed to target EN50065, FCC, ARIB compliant PLC applications. Together with the application core, it enables the STCOMET to support the PRIME, G1, G3, IEEE 1901.2, METERS AND MORE® and other narrow band PLC protocol specifications.
The metrology sub-system is suitable for EN 50470-1, EN 50470-3, IEC 62053-21, IEC 62053-22 and IEC 62053-23 compliant class1, class0.5 and class0.2 AC metering applications.
ST7540 FSK stripped down power line transceiver (4800Bit)
ST7538 FSK power line transceiver (4800Bit)
-

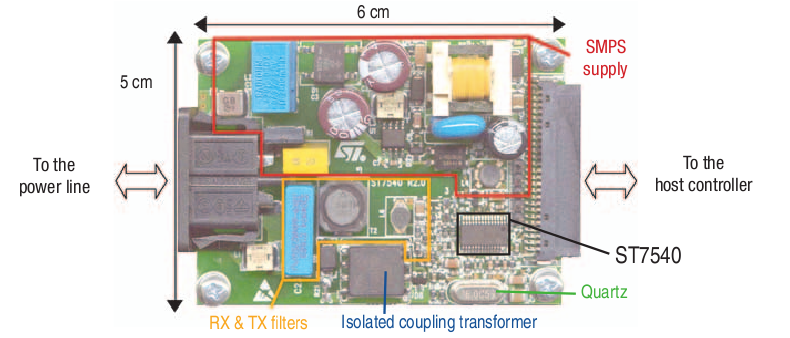

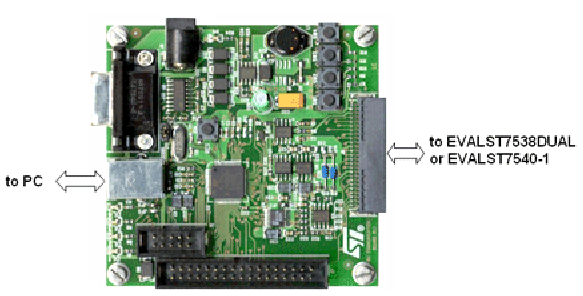

ST7540 FSK stripped down power line transceiver
-
Introduction:
Introduction:
STMicroelectronics’
narrowband Power Line Transceivers (PLT) provide reliable communication
over existing power lines with limited data throughput required by main
remote control applications like Automatic Meter Reading (AMR) and
Management (AMM), street lighting control, loads management and home
and building automation.
The very favorable cost/performance ratio makes ST’s transceivers a unique communication alternative or extension of more conventional dedicated wireline and
wireless systems.
This new ST7540 Power Line Transceiver is the most compact and cost effective solution from ST.
The very favorable cost/performance ratio makes ST’s transceivers a unique communication alternative or extension of more conventional dedicated wireline and
wireless systems.
This new ST7540 Power Line Transceiver is the most compact and cost effective solution from ST.
- Half duplex binary FSK transceiver
- 8 programmable communication frequencies
- Programmable baud from 600 to 4800 bps
- Integrated single ended line driver
- Freezable power amplifier output level
- Tunable output active filtering
- Integrated 5 V, 50 mA linear voltage regulator
- Integrated 3.3 V, 50 mA linear voltage regulator
- Secure access 48 bit control register
- Programmable carrier and preamble detection
- Programmable band in use detection
- Programmable header and frame length recognition
- Watchdog timer
- SPI/UART microcontroller interfacing
- Very low power consumption (Iq=3.5 mA)
- Very high sensitivity (0.25 mV RMS)
- Compliant with CENELEC EN50065 and FCC part 15 regulatory specifications
- Compact 4.4x8.7x1 mm TSSOP28 exposed pad package
GUI interface only for Windows XP is HERE
-

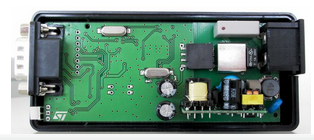

STEVAL-IHP003V1 remote control network based on PLM ST7540 and STM32
http://www.st.com/internet/evalboard/product/250663.jsp
- PLM communication compliant with EN50065-1 (band C)
- FSK modulation with low frequency deviation
- Centre frequency 132.5 kHz ± 0.2%
- Bitrate: 2400 bits/s
- Microcontroller for interfacing PLM with STB
- Robust protocol implementation pursuant to KNX protocol stack (EN50090)
- Plug and play network formation
- Logical network creation
- Master-slave and peer-to-peer network configuration
- Node self-discovery to enable devices (nodes) to discover other devices and/or to be discovered by other devices
- Node admission: automatic, using ID number stored in each device
- Network address management: selection, announcements and conflict resolution
- Operating temperature range: 0 °C -50 °C
- RoHS compliant
ST7570 S-FSK power line networking system-on-chip
■ Fully integrated narrow-band power line networking system-on-chip
■ High performing PHY processor with embedded turn-key firmware for spread frequency shift keying (S-FSK) modulation:
■ 3.3 V or 5 V digital I/O supply
■ Mains zero crossing synchronization
■ Suitable for EN50065 and FCC part 15 compliant applications
■ VFQFPN48 package with exposed pad
■ Integrated 5 V and 1.8 V linear regulators for AFE and digital core supply
■ -40 °C to +85 °C temperature range

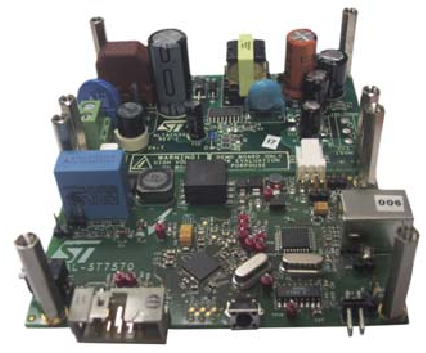

EVALKITST7570-1 evaluation board manual
■ High performing PHY processor with embedded turn-key firmware for spread frequency shift keying (S-FSK) modulation:
– Programmable bit rate up to 2.4 Kbps (@ 50 Hz)
– 1 Hz step programmable carriers up to 148.5 kHz
– Signal to noise ratio estimation
– Received signal strength indication
■ Protocol engine embedding:– 1 Hz step programmable carriers up to 148.5 kHz
– Signal to noise ratio estimation
– Received signal strength indication
– IEC61334-5-1 PHY and MAC layers
– Alarm management
■ On chip peripherals: – Alarm management
– Host controller UART interface
■ Fully integrated analog front end: – ADC and DAC
– PGA with automatic gain control for high receiving sensitivity
– High linearity modulated signal generation
■ Fully integrated single-ended power amplifier for line driving – PGA with automatic gain control for high receiving sensitivity
– High linearity modulated signal generation
– Up to 1 A rms, 14 V p-p output
– Configurable Active filtering topology
– Very high linearity
– Embedded temperature sensor
– Current control feature
■ 8 to 18 V power amplifier supply– Configurable Active filtering topology
– Very high linearity
– Embedded temperature sensor
– Current control feature
■ 3.3 V or 5 V digital I/O supply
■ Mains zero crossing synchronization
■ Suitable for EN50065 and FCC part 15 compliant applications
■ VFQFPN48 package with exposed pad
■ Integrated 5 V and 1.8 V linear regulators for AFE and digital core supply
■ -40 °C to +85 °C temperature range
EVALKITST7570-1 evaluation board manual
ST7580 FSK, N-PSK multi-mode power line networking system-on-chip
■ Fully integrated narrow-band power line networking system-on-chip
■ High performing DSP engine with embedded turn-key firmware featuring:
■ 8051 on-chip peripherals:
■ Fully integrated analog front end:
■ 8 V to 18 V power amplifier supply
■ Integrated 5 V and 1.8 V linear regulators for AFE and digital core supply
■ Automatic zero crossing synchronization
■ Suitable for EN50065 and FCC part 15 compliant applications
■ CENELEC A, B and C bands compliant
■ Suitable for protocol standard extensions
■ -40°C to +85°C temperature range
■ High performing DSP engine with embedded turn-key firmware featuring:
– B-FSK modulation up to 9.6 kbps
– BPSK, QPSK, 8PSK modulations up to 28.8 kbps
– Dual channel operation mode
– Convolutional error correction coding
– Signal-to-noise ratio estimation
■ Programmable 8-bit 8051 protocol engine with embedded program ROM for turn-key communication protocol– BPSK, QPSK, 8PSK modulations up to 28.8 kbps
– Dual channel operation mode
– Convolutional error correction coding
– Signal-to-noise ratio estimation
■ 8051 on-chip peripherals:
– Host controller UART/SPI interface
– I2C/SPI external data memory interface
– High speed SPI interface for optional external FLASH program code execution
– Watchdog timer
– 3 programmable 16 bit timers
– 1 configurable GPIO line
– JTAG debugging
■ Integrated 128-bit AES encryption block– I2C/SPI external data memory interface
– High speed SPI interface for optional external FLASH program code execution
– Watchdog timer
– 3 programmable 16 bit timers
– 1 configurable GPIO line
– JTAG debugging
■ Fully integrated analog front end:
– ADC and DAC
– High sensitivity receiver
– High linearity transmitter with intelligent gain control
■ Fully integrated single-ended power amplifier for line driving– High sensitivity receiver
– High linearity transmitter with intelligent gain control
– Up to 1 Arms, 14 Vpp output
– Configurable active filtering topology
– Very high linearity
– Embedded temperature sensor
– Current control feature
■ 3.3 V or 5 V I/O power supply– Configurable active filtering topology
– Very high linearity
– Embedded temperature sensor
– Current control feature
■ 8 V to 18 V power amplifier supply
■ Integrated 5 V and 1.8 V linear regulators for AFE and digital core supply
■ Automatic zero crossing synchronization
■ Suitable for EN50065 and FCC part 15 compliant applications
■ CENELEC A, B and C bands compliant
■ Suitable for protocol standard extensions
■ -40°C to +85°C temperature range

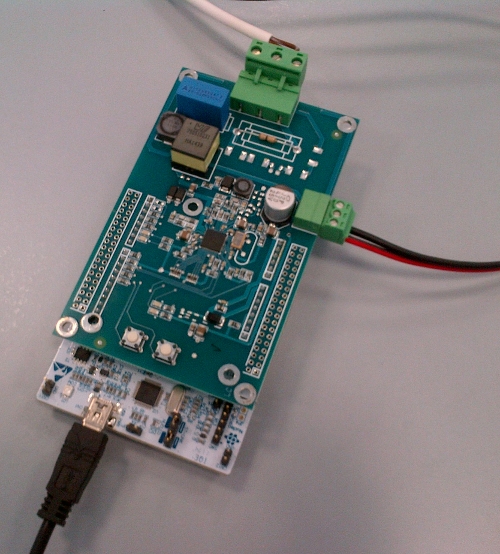

EvaBoards
UP- ST7580 Shield: PCB, BOM, etc
- Demo SW for: PowerLine ST7580, KEIL MDK-ARM, ModBUS, etc
- Training concerning ST7580 plus Nucleo and ModBUS is here.
- ATTENTION:
At the moment, the: Training concerning ST7580 plus Nucleo and ModBUS
shall be issued only to SILICA/STM customers.
If you are a customers of SILICA send email to me and request me:
Password for: Training concerning ST7580 plus Nucleo and ModBUS
please specify also your City, Country and your contact in SILICA.
If you are STM customer please contact directly your local office of STM.

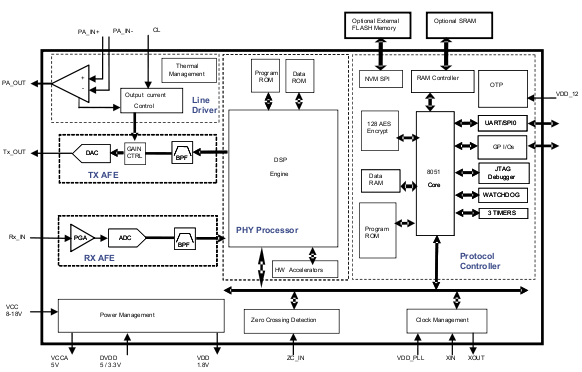

ST7590 Narrow-band OFDM power line networking PRIME compliant system-on-chip
■ Fully integrated narrow-band power line networking system on chip
■ High performing DSP engine with embedded turnkey firmware featuring:
■ On chip peripherals:
■ Fully integrated analog front end:
■ High performing DSP engine with embedded turnkey firmware featuring:
– OFDM modulation:
– 97 sub-carriers in CENELEC A band
– BPSK, QPSK, 8PSK differential programmable modulation
– Programmable baud up to 128 kbps
– Convolutional coding and Viterbi decoding
– Signal to noise ratio and channel quality estimation
– Full PRIME compliant PHY
■ Programmable 8051 protocol engine with embedded PRIME compliant MAC and IEC 61334-4-32 data link layer– 97 sub-carriers in CENELEC A band
– BPSK, QPSK, 8PSK differential programmable modulation
– Programmable baud up to 128 kbps
– Convolutional coding and Viterbi decoding
– Signal to noise ratio and channel quality estimation
– Full PRIME compliant PHY
■ On chip peripherals:
– Host controller UART/SPI interface
– I2C/SPI external data memory interface
– High speed SRAM controller for optional external SRAM program code execution
– Watchdog timer
– 3 programmable 16 bit timers
– Up to 10 lines GPIO
– JTAG debugging
■ On chip 128-bit AES encryption block– I2C/SPI external data memory interface
– High speed SRAM controller for optional external SRAM program code execution
– Watchdog timer
– 3 programmable 16 bit timers
– Up to 10 lines GPIO
– JTAG debugging
■ Fully integrated analog front end:
– ADC and DAC
– High sensitivity receiver
– High linearity transmitter with intelligent gain control
– High sensitivity receiver
– High linearity transmitter with intelligent gain control
■ Fully integrated single-ended power amplifier for line driving
■ 8 V to 18 V power amplifier supply
■ Integrated 5 V and 1.8 V linear regulators for AFE and digital core supply
■ Suitable for applications compliant with EN50065 and FCC part 15 specifications
■ -40 °C to +80 °C temperature range
■ QFN48 7x7 and TQFP 100 14x14 exposed pad package options
– Up to 1 A rms, 14 Vpp single ended
– Configurable active filtering topology
– Very high linearity
– Embedded temperature sensor
– Current control feature
■ 3.3 V or 5V I/O digital I/O supply– Configurable active filtering topology
– Very high linearity
– Embedded temperature sensor
– Current control feature
■ 8 V to 18 V power amplifier supply
■ Integrated 5 V and 1.8 V linear regulators for AFE and digital core supply
■ Suitable for applications compliant with EN50065 and FCC part 15 specifications
■ -40 °C to +80 °C temperature range
■ QFN48 7x7 and TQFP 100 14x14 exposed pad package options
