STM has released
new intelligent power module that are listed below.
Reference page: http://www.st.com/internet/analog/subclass/1276.jsp

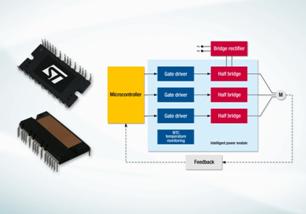

The SLLIMM™ (small low-loss intelligent molded module) family of IPMs combines optimized silicon chips, integrated in three main inverter blocks:
* Power stage
– Six short-circuit rugged IGBTs
– Six freewheeling diodes
* Driving network
– Three high-voltage gate drivers
– Discrete gate resistors
– Three bootstrap diodes
* Protection and optional features
– Op-amps for advanced current sensing
– Comparators for fault protection against overcurrent and short circuit
– NTC sensor for temperature control
– Smart shutdown function
– Deadtime, interlocking function and undervoltage lockout
The
fully isolated SLLIMM package (SDIP) offers extremely low thermal
resistance with optimum quality level and cost-effectiveness.
Key Features
- 600 V, 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes
- Short-circuit protected IGBTs
- Direct Bound Copper fully isolated package for enhanced Rth
- Smart shut-down function
- Comparator for fault protection against overcurrent and short circuits
- Op-amps for advanced current sensing
REFERENCE:
Click here for IPM Product Selector
Click here for Mounting instructions for SDIP-25L and SDIP-38L intelligent power modules (IPM) -
TN0107
Click here for IGBTs page

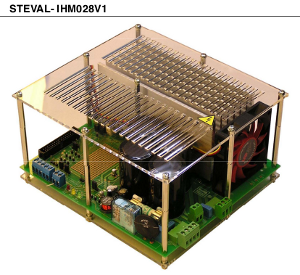

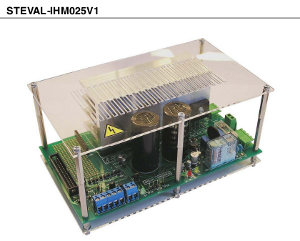

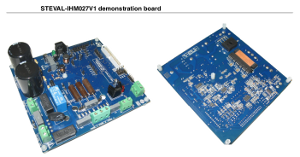

Click here for EvaBoard
See also, STM32 Motor Control taht is here
